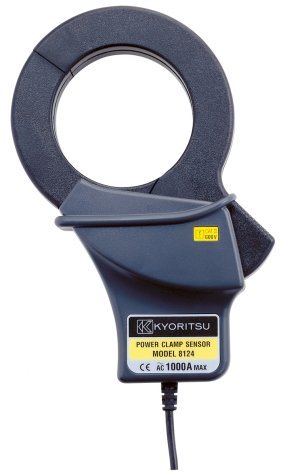

Reed Instruments KEW8124 1000 Amp AC Clamp
|
Item Number: KEW8124
Manufacturer: Reed Instruments
Part Number: KEW8124
|
|
Reed Instruments KEW8124 1000 Amp AC Clamp
Specifications:
-
Conductor size: F40
-
Phase Shift: within 1.0 (45~65Hz)
-
Conductor size: F68
-
Rated current: AC 1000A
-
Output voltage: AC 500mV/1000A (AC 0.5mV/A)
-
Accuracy: 0.5%rdg0.1mV (50/60Hz) 1.0%rdg0.2mV (40Hz~1kHz)
-
Phase Shift: within 1.0 (45~65Hz)
-
Withstand voltage: AC 5350V for 5 seconds
-
Cable length: Approx. 3m
-
Output connector: MINI DIN 6pin
-
Operating temperature ranges: 0~50C, less than 85% RH (without condensation)
-
Output impedance: Approx. 1O
-
Applicable standards: IEC 61010-1:2001, IEC 61010-2-032:2002, CAT.III 600V
pollution degree 2
-
Dimensions: 186(L) x 129(W) x 53(D) mm
-
Weight: Approx.510g
|
The Reed KEW8125 is the replacement clamp to most Reed KEW6300 power meters.
|
The KEW6300 has 12 kinds of power measurements, including: voltage, current , active power, apparent power, reactive power, active energy, apparent energy, reactive energy, power factor (cos ΓΈ), frequency, demand measurement, and current flow on netral.
|
