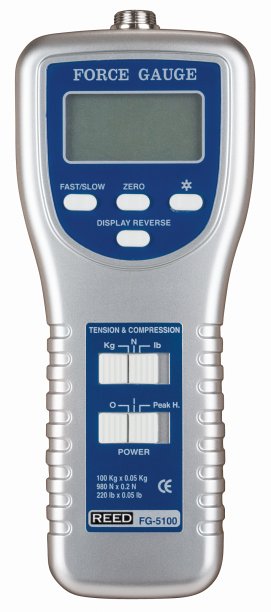

Reed Instruments FG-5100 100Kg Force Gauge

• Wide range portable device provides readings of tension (push) or compression (pull); switchable from ounces to grams to Newtons. Instantly recalls “Peak Load” (maximum load) and average readings.
• Microprocessor assures ±0.2% accuracy and fast 0.2 second update time. Exclusive load cell provides wide measuring range with overload capacity of 200% f.s.
• 100% Zero/Tare control enables maximum pre-load to be stored in the memory.
• Large 5 digit LCD display is reversible, making it easy to read whether test stand mounted or hand held.
• Battery operated. Meters use 6 x 1.5V “AA” batteries. Auto Power Off minimizes power consumption and saves battery life.
• Rugged and versatile. Used to take indoor and outdoor measurements, in hard to reach areas. Ergonomically designed to fit in the palm or your hand.
• Holes are provided on the back of the meter case making it adaptable for test stand use which facilitates precise and repetitive tension and compression testing.
• Complete with built-in load cell, hook adapter for tension, plus flat head, cone head, and chisel head adapters for compression, 5” (120mm) extension rod, operation manual and carrying case.
• RS-232 computer interface
• Separate 100kg load cell sensor with two hooks and 2m cable

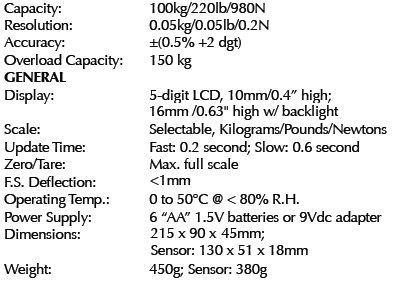

Specifications:
