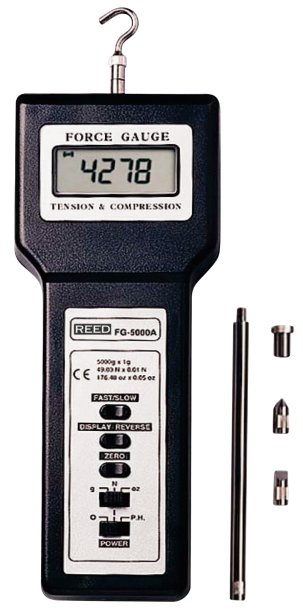

Reed Instruments 5000g FG-5000A Force Gauge
|
Item Number: FG-5000A
Manufacturer: Reed Instruments
Part Number: FG-5000A
|
|
Reed Instruments 5000g FG-5000A Force Gauge
Features:
-
Switchable from ounces to grams to Newtons
-
Instantly recalls "Peak Load" (maximum load) and average readings
-
Microprocessor assures ±0.2% accuracy and fast 0.2 second update time
-
Exclusive load cell provides wide measuring range with overload capacity of 200% f.s.
-
100% Zero/Tare control enables maximum pre-load to be stored in the memory
-
Large 5-digit LCD display is reversible, making it easy to read whether hand hald or test stand mounted
-
Holes are provided on the back of the meter case to facilitate test stand mounting
-
Auto Power Off minimizes power consumption and saves battery life
Specifications:
|
Capacity:
|
5000 g/176 oz/ 49 N
|
|
Resolution:
|
1 g/0.05oz/0.01 N
|
|
Accuracy:
|
±0.4% + 1 digit
|
|
Overload Capacity:
|
30kg
|
|
Full Scale Deflection:
|
0.4mm
|
|
Power Supply:
|
6 x 1.5V "AA" batteries or 9Vdc adapter
|
|
Dimensions:
|
337 x 83 x 39mm Sensor: 130 x 51 x 18mm
|
|
Weight:
|
551g
|
Includes:
|
