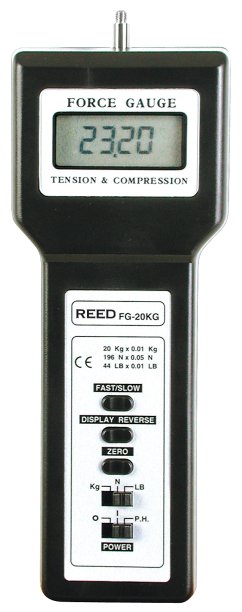

Reed Instruments 20Kg FG-20KG Forge Gauge

• Wide range portable device provides readings of tension (push) or compression (pull); switchable from ounces to grams to Newtons. Instantly recalls “Peak Load” (maximum load) and average readings.
• Microprocessor assures ±0.2% accuracy and fast 0.2 second update time. Exclusive load cell provides wide measuring range with overload capacity of 200% f.s.
• 100% Zero/Tare control enables maximum pre-load to be stored in the memory.
• Large 5 digit LCD display is reversible, making it easy to read whether test stand mounted or hand held.
• Battery operated. Meters use 6 x 1.5V “AA” batteries. Auto Power Off minimizes power consumption and saves battery life.
• Rugged and versatile. Used to take indoor and outdoor measurements, in hard to reach areas. Ergonomically designed to fit in the palm or your hand. Holes are provided on the back of the meter case making it adaptable for test stand use which facilitates precise and repetitive tension and compression testing.

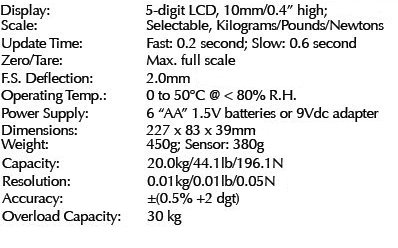

Specifications:

• Built-in load cell
• Hook adapter for tension
• Flat head
• Cone head
• Chisel head adapters for compression
• 5” (120mm) extension rod
• Operation manual
• Carrying case

Optional FS-1001 Test Stand: Permits precise and repetitive tension and compression testing.
	Optional WG-01 Wedge: Optional accessory to be used with the test stand to hold the material under test in place.
