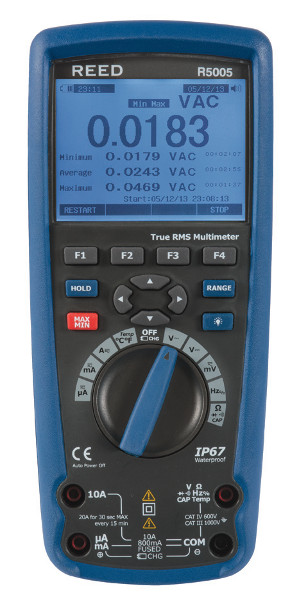

Reed R5005 True RMS Multimeter
|
Item Number: R5005
Manufacturer: Reed Instruments
Part Number: R5005
* Whole number only
|
|
Reed R5005 True RMS Multimeter
The REED True RMS Industrial Logging Multimeter is one of the most versatile tools to have on hand, measuring AC and DC voltage and current, resistance, capacitance, and frequency, as well as temperature. The R5005 industrial digital multimeter allows you to solve problems faster and helps to minimize downtime with its ability to log data and review it graphically on-screen.
Features
- AC and DC voltage and current, resistance, capacitance, frequency and duty cycle measurements
- 10MHz frequency counter
- Temperature measurement capability
- True RMS AC voltage and current measurements
- Min/Max/Avg and Peak hold (>1ms) functions
- Store up to 10,000 recorded events
- Real time clock for automatic time stamping of readings
- Log multiple sessions or log data continuously for over 200 hours
- 50,000-count graphical LCD with backlight displays multiple sets of measurement data simultaneously
- Bluetooth interface
- IP67 rated waterproof
Technical Specifications
AC/DC Voltage Range: 50, 500mV, 5, 50, 500, 1000V
Resolution: 0.001, 0.01mV, 0.0001, 0.001, 0.01, 0.1V
Accuracy: AC: ±(0.3% rdg. + 25 dgt.) (50/60Hz);
DC: ±(0.025% rdg. + 5 dgt.)
AC/DC Current Range: 500, 5000μA, 50, 500mA, 10A
Resolution: 0.01, 0.1μA, 0.001, 0.01mA, 0.001A
Accuracy: AC: ±(0.6% rdg. + 25 dgt.) (50/60Hz);
DC: ±(0.15% rdg. + 20 dgt.)
Resistance Range: 50, 500Ω, 5, 50, 500kΩ, 5, 50MΩ
Resolution: 0.001, 0.01Ω, 0.0001, 0.001, 0.01kΩ, 0.01, 0.001MΩ
Accuracy: ±(0.05% rdg. + 10 dgt.)
Capacitance Range: 5, 50, 500nF, 5, 50, 500μF, 10mF
Resolution: 0.001, 0.01, 0.1nF, 0.001, 0.01, 0.1μF, 0.01mF
Accuracy: ±(2% rdg. + 40 dgt.)
Frequency Range: 50, 500Hz, 5, 50, 500kHz, 5, 10MHz
Resolution: 0.001, 0.01Hz, 0.0001, 0.001, 0.01kHz, 0.0001, 0.001MHz
Accuracy: ±(0.01% rdg. + 10 dgt.)
Temperature Range: -50 to 1000°C (-58 to 1832°F)
Resolution: 0.1°C (0.1°F)
Accuracy: ±(1.0% rdg. + 2.5°C (4.5°F)
|
Our Price: Starting at $68.00
