Reed Instruments ST-MULTIKIT Multimeter Combo Kit
|
Item Number: ST-MULTIKIT
Manufacturer: Reed Instruments
Part Number: ST-MULTIKIT
* Whole number only
|
 Reed Instruments ST-MULTIKIT Multimeter Combo Kit     |
|

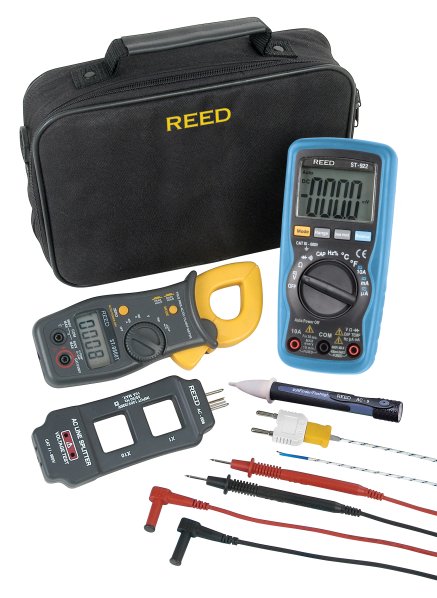

Reed Instruments ST-MULTIKIT Multimeter Combo Kit
Includes
-
ST-922: Autoranging digital multimeter with temperature function
-
ST-9800T: AC/DC current clamp meter with temperature function
-
AC-9: Non-contact voltage detector with built-in flashlight
-
AC-006: AC line splitter
-
AD-1: Temperature input adapter with TP-01 thermocouple wire probe

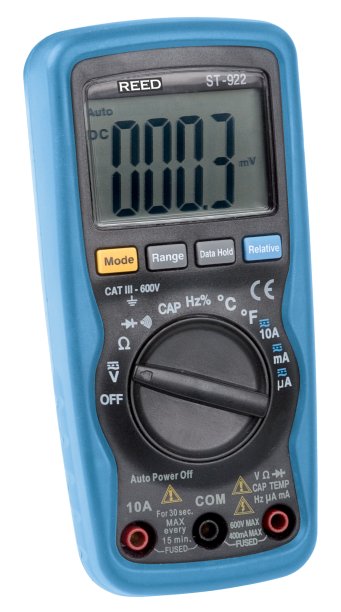

Reed Instruments ST-922 Digital Multimeter
Features
-
0.5% basic DC accuracy
-
4,000-count resolution
-
Diode check and continuity test
-
Data hold function
-
Auto ranging and auto power off
-
Double molded plastic housing
-
EN61010-1 Cat. III 600V
Technical Specifications

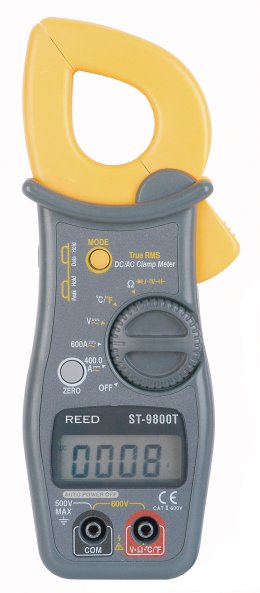

.jpg) Reed Instruments ST-9800T 2000A AC/DC Clamp Meter
Features
-
True RMS AC/DC clamp meter with temperature function
-
AC/DC current to 600A
-
Basic 2.5% DC current accuracy
-
Resolution 0.1A
-
Data Hold
-
Peak Hold
-
DC current zero adjust
-
Auto power off
-
Temperature Range: -4 to 1400°F / -20 to 760°C
Specifications

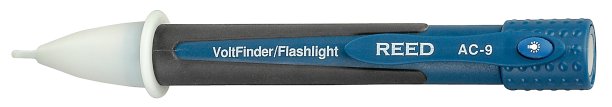

Reed Instruments AC-9 Non-contact Voltage Detector
Features
-
Detects voltage without contact
-
Built-in bright flashlight with on/off button
-
Flashing red LED indicator
-
For use on 50/60 Hz circuits
-
Double molded plastic housing
-
All outer surfaces are non-conductive for safety
-
Convenient size with pocket clip
Technical Specifications

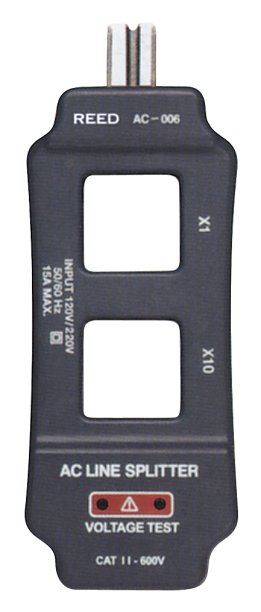

 Reed Instruments AC-006 AC Line Splitter
Features
-
Enables clamp meter user to measure
-
AC current on a 2-wire or 3-wire power cord to 15A
-
Plugging the power connector into the line splitter separates the hot/ live conductor
from the neutral and ground
-
Provides safe measurements of current without the need to cut off the plug and
separate the conductors
-
Voltage check function

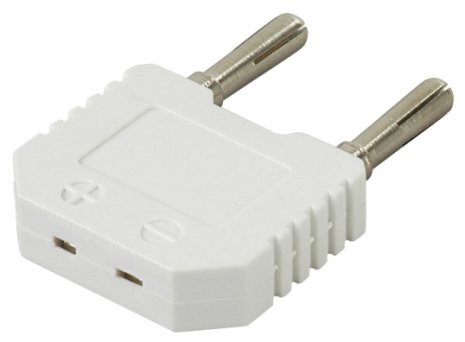

 Reed Instruments AD-1 Input Adapter
Features
|
