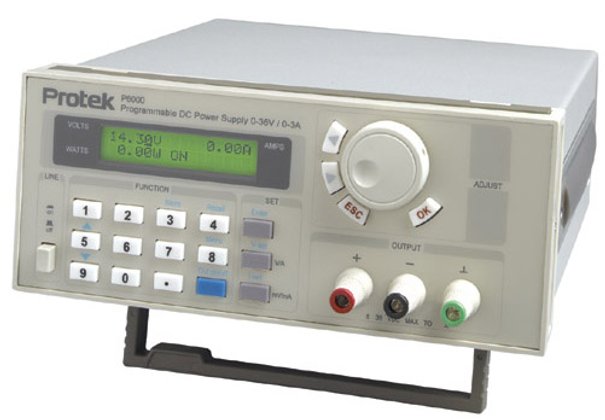

Protek P6000 - Programmable Power Supply (0-30V @ 0-3A)
|
|
Item Number: P6000
Manufacturer: Protek
Part Number: P6000
* Whole number only
|
Protek P6000 - Programmable Power Supply (0-30V @ 0-3A)
Protek P6000 Features:
-
All values may be entered from keyboard or rotary dial
-
RS 232/485 interface with cable, adapter and software CD
-
Volts, amps and power are displayed on a backlit LCD display
-
10 settings may be stored in memory
-
Light weight and energy efficient
-
Over voltage and current protection
-
Outstanding in Production Test Applications
Protek P6000 Specifications:
|
|
|
Range
|
0 to ±36V
|
|
Voltage Resolution
|
1mV: 0 to 3.999V
10mV: 4 to 36V
|
|
|
|
|
|
|
|
|
Range
|
0 to ±3A
|
|
Amps Resolution
|
1mA
|
|
|
|
|
|
|
|
|
Load Regulation
|
±0.02% + 10mV
|
|
Line Regulation
|
0 to 3.999V: ±0.01% + 3mV
4 to 36V: ±0.02% + 10mV
|
|
Ripple
|
£1mV RMS
|
|
|
|
|
|
|
|
|
Load Regulation
|
±0.02% + 10mV
|
|
Line Regulation
|
±0.02% + 10mV
|
|
Ripple and noise
|
£4mV Rms
|
|
|
|
|
|
|
|
|
Voltage
|
0.1% + 20mV
|
|
Current
|
0.1% + 20mA
|
|
|
|
|
|
|
Read Back Accuracy (25 °C)
|
|
|
Voltage
|
0 to 19.999V: 0.2% + 20mV
20 to 36V: 0.2% + 100mV
|
|
Current
|
0.2% + 20mA
|
|
|
|
|
|
|
|
|
Voltage
|
0 to 3.999V: 1mV
4 to 36V: 10mV
|
|
Current
|
1mA
|
|
|
|
|
|
|
|
|
Voltage
|
0 to 19.999V: 10mV
20 to 36V: 100mV
|
|
Current
|
10mA
|
|
|
|
|
|
|
|
|
Interface
|
RS-232 adapter and cables
|
|
Software
|
Power MS Power Management software, ActiveX and DLL Support tools for VC++/VB/Delphi/LabView (upon request)
|
|
Memory
|
10 Locations EEPROM for saving power settings
|
|
Protection
|
Over voltage, over current and power
|
|
|
|
|
|
|
|
|
AC Input Volts
|
110/220V, 50/60Hz
|
|
Power Consumption
|
200VA
|
|
Operating Temperature
|
0 to 50°C (32 to 120°F) @ relative humidity < 80%
|
|
Size
|
3.5” (H) x 8.3” (W) x 9.8" (D)
|
|
Weight
|
13.2 lbs
|
|
Supplied Accessories
|
Manual, Line cord, Handels, RS-232 adapter and cables
|
|
Optional Accessories
|
USB adapter and cables
|
|
|
