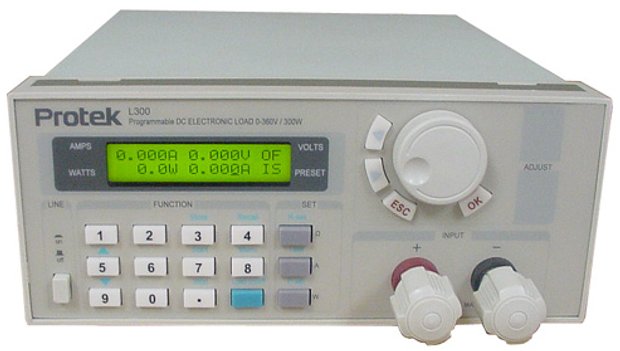

Protek L300 - Programmable 300W Electronic Load
|
|
Item Number: L300
Manufacturer: Protek
Part Number: L300
* Whole number only
|
Protek L300 - Programmable 300W Electronic Load
Protek L300 Features:
-
300W Maximum Power
-
Operates in Constant current, Constant resistance or Constant power modes
-
1mA current setting resolution
-
Voltage, Current and Power are displayed on the back lit display
-
Back light LCD
-
Values may be enter from key board of rotary dial
-
RS232 interface and control software
-
Small size and light weight
Protek L300 Specifications:
|
|
|
Inputs
|
1
|
|
Input Volts
|
0 to 360V
|
|
Input Current
|
0 to 30A
|
|
Input Power
|
0 to 300W
|
|
Operating Modes
|
Constant current, Constant Resistance or Constant power
|
|
Voltage Resolutions
|
0.000V to 3.999V ±(0.2% + 3mV)
4.00V to 35.999V ±(0.2% + 30mV))
36.0V to 360.0V ±(0.2% + 30mV)
|
|
Current Resolutions
|
0.000A to 2.999A ±(0.2% + 3mA))
3.00A to 35.999 A ±(0.2% + 3mA)
|
|
Current Setting Resolution
|
1mA (0 to 2.999A), 10mA (3.00A to 30A)
|
|
Power Setting Resolution
|
0.1W (0 to 300W)
|
|
Resistance Setting Resolution
|
0.01W (0 to 99.99W), 0.1W (100 to 500W)
|
|
Minimum Resistance
|
< 0.08W
|
|
Ripple
|
< 10mV P-P
|
|
Protection
|
Over Voltage, Over Current, Over power, Over Heating and Reverse polarity
|
|
Power
|
120/220V, 50/60Hz
|
|
Communication
|
RS232 or RS485
|
|
Memory
|
10 setups may be stored and recalled
|
|
Software
|
Monitor software CD. ActiveX modules for VC++, Visual basic, Delphi and LabView upon request.
|
|
|
|
|
|
|
|
|
Size
|
3.5" (H) x 8.3" (W) x 9.8" (D)
|
|
Weight
|
11 lbs
|
|
Supplied Accessories
|
Manual, Line cord, Handles, RS-232 adapter and Cables
|
|
Optional Accessories
|
USB adapter and Cable
|
|
|
