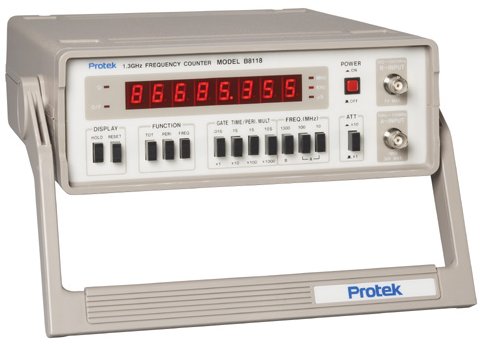

Protek B8118 - 1.3GHz Multi-Function Counter
|
|
Item Number: B8118
Manufacturer: Protek
Part Number: B8118
* Whole number only
|
Protek B8118 - 1.3GHz Multi-Function Counter
Protek B8118 Features:
-
High accuracy frequency measurements to 1.3 GHz
-
Frequency Resolution to 0.1Hz
-
High input sensitivity
-
Large Bright 8 digit LED display With gate time and function indicators
-
x10 attenuator
-
Measures Frequency, Period and Totalize
Protek B8118 Specifications:
|
Frequency Measurement
(Input A)
|
|
|
Range
|
10 Hz to 100MHz
|
|
Resolutions
|
0.1Hz,
|
|
Gate Times
|
0.01s to 10s in 4 decades
|
|
Accuracy
|
±(Time base error + 1 count)
|
|
|
|
|
|
|
Frequency Measurement
(Input B)
|
|
|
Range
|
100MHz to 1.3GHz
|
|
Best Resolution
|
10Hz
|
|
Gate Times
|
0.01s to 10s in 4 decades
|
|
Accuracy
|
±(Time base error + 1 count)
|
|
|
|
|
|
|
|
|
Frequency range
|
DC to 10MHz
|
|
Count Capacity
|
0 to 99,999,999 counts
|
|
Resolution
|
1 count
|
|
Minimum Pulse width
|
250ns
|
|
Accuracy
|
±1 count
|
|
|
|
|
|
|
|
|
Range
|
1.0 µs to 100ms (10Hz to 1MHz)
|
|
Minimum pulse width
|
250nS
|
|
Resolutions
|
100ps, 1ns, 10ns, 100ns
|
|
Accuracy
|
±(Time base error + 1 count) + Trigger error
|
|
|
|
|
|
|
Input Characteristics
(Input A)
|
|
|
Sensitivity
|
50 mV (10Hz to 100Hz)
20mV (100Hz to 100MHz)
|
|
Input Impedance
|
1MW + 30pF capacitance
|
|
Attenuator
|
x1, x10
|
|
Coupling
|
AC
|
|
Maximum input volts
|
30V rms
|
|
|
|
|
|
|
Input Characteristics
(Input B)
|
|
|
Sensitivity
|
15mV (100MHz to 1000MHz)
40mV (1000MHz to 1300MHz)
|
|
Input Impedance
|
50W
|
|
Coupling
|
AC
|
|
Max. Input Voltage
|
7V
|
|
|
|
|
|
|
|
|
Frequency
|
10.00000MHz
|
|
Stability
|
±3 PPM per week
|
|
|
|
|
|
|
|
|
AC input Volts
|
120V or 220V
|
|
Line Frequency
|
50/60Hz
|
|
Operating temperature
|
0 to 40°C (32 to 104°F)
|
|
Size
|
4.0" (H) x 10.0" (W) x 11.0" (D)
|
|
Weight
|
3.75 lbs
|
|
Accessories
|
Line cord, Manual, BNC cable
|
|
|
|
