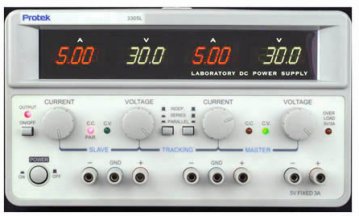

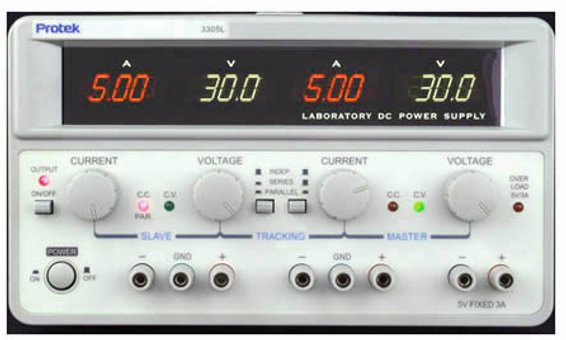

Protek 3305L - Triple Output DC Power Supply with LED Display(Dual 0utput 30V @ 5A, Fixed 5V @ 3A)
|
Item Number: 3305L
Manufacturer: Protek
Part Number: 3305L
* Whole number only
|
|
3305L - Triple Output DC Power Supply with LED Display(Dual 0utput 30V @ 5A, Fixed 5V @ 3A)
Protek 3305L Features:
-
Dual 0 to ±30V with 0 to ±5.0 Amps Load current outputs and a fixed 5V at 3 Amp output
-
Constant voltage or Constant current operation
-
Outputs may be connected in series or parallel
-
Designed for reliable operation
-
Excellent Load and Line Regulation
-
Low Noise and Ripple
-
Two 3 digit LEDs displays monitor voltage and current for each output
-
Continuously adjustable Output voltage and current limiting
Protek 3305L Specifications:
|
|
|
Volts
|
0 to ±30V DC
|
|
Amps
|
0 to 5 Amps
|
|
|
|
|
|
|
|
|
Line Regulation
|
0.01% + 3mV
|
|
Load Regulation
|
0.01% + 2mV
|
|
Ripple and noise
|
≤ 2.0mV RMS
|
|
|
|
|
|
|
|
|
Load Regulation
|
≤ 0.2% +3mA
|
|
Line Regulation
|
≤ 0.2% +0.3mA
|
|
Ripple and Noise
|
≤ 3mA RMS
|
|
|
|
|
|
|
|
|
Accuracy
|
Volts: ± (0.2% rdg + 2d)
Amps: ± (1.0% rdg + 2d)
|
|
Resolution
|
Volts: 0.1V
Amps: 0.01A
|
|
|
|
|
|
|
|
|
Voltage
|
5 Volts
|
|
Amps
|
3 Amps
|
|
Voltage Accuracy
|
± 1.0%
|
|
Ripple and Noise
|
≤ 2mV RMS
|
|
|
|
|
|
|
|
|
AC Input Voltage
|
110V to 127V @ 60Hz
220V to 240V @ 50Hz selectable
|
|
Dimensions
|
Size: 10.2"(W) x 6.3"(H) x 13"(D)
Weight: 20 lbs
|
|
Environmental Storage Temp
|
-10ºC to 70ºC @ < 70% R.H (-14ºF to 158ºF)
|
|
Environmental Operating Temp
|
0ºC to 40ºC @ < 80% R.H (32ºF to 104ºF)
|
|
Temperature Coefficient
|
300ppm/ºC
|
|
Accessories
|
Operating manual and AC Line cord
|
|
|
