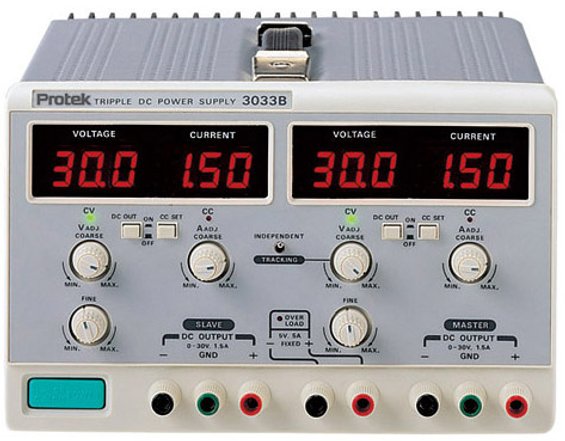

Protek 3033B - Triple Output Power Supply (Dual 0-30V @ 1.5 A, Fixed 5V @ 5A)
|
Item Number: 3033B
Manufacturer: Protek
Part Number: 3033B
* Whole number only
|
|
Protek 3033B - Triple Output Power Supply (Dual 0-30V @ 1.5 A, Fixed 5V @ 5A)
Protek 3033B Features:
-
Dual 0 to 30V with 0 to 1.5 Amps Load current outputs and a fixed 5 Volt at 5 Amp output
-
Both Variable outputs have a Voltage and Current display
-
Series output tracking
-
Small case size
-
Excellent Line, Load and Ripple specifications
Protek 3033B Specifications:
|
|
|
Volts
|
0 to ±30V DC
|
|
Amps
|
0 to ±1.5A
|
|
|
|
|
|
|
|
|
Load and Load Regulation
|
0.02% + 2mV
|
|
Ripple and Noise
|
1mV RMS
|
|
|
|
|
|
|
|
|
Load Regulation
|
0.05% + 5mA
|
|
Line Regulation
|
0.05% + 0.25mA
|
|
Ripple and Noise
|
2mA RMS
|
|
|
|
|
|
|
Digital Display
(Outputs 1 & 2)
|
|
|
Resolution (Volts)
|
100mV
|
|
Resolution (Current)
|
10mA
|
|
Accuracy
|
±(0.5% + 3d)
|
|
Tracking Error
|
±(0.5% + 10mV)
|
|
|
|
|
|
|
|
|
Volts Max
|
5V ±0.2.5%
|
|
Amps Max
|
5A ±2.5%
|
|
Load Regulation
|
0.2% + 2mV
|
|
Line Regulation
|
0.2% + 2mV
|
|
|
|
|
|
|
|
|
AC input Voltage
|
120/220V, 50/60Hz
|
|
Power Consumption
|
192VA
|
|
Operating Temperature
|
0 to 35°C (32 to 95°F)
|
|
Size
|
6.3" (H) × 9.0" (W) × 13.0" (D)
|
|
Weight
|
20 lbs
|
|
Supplied Accessories
|
Manual, Line cord, Test Leads (3 sets)
|
|
|
|
