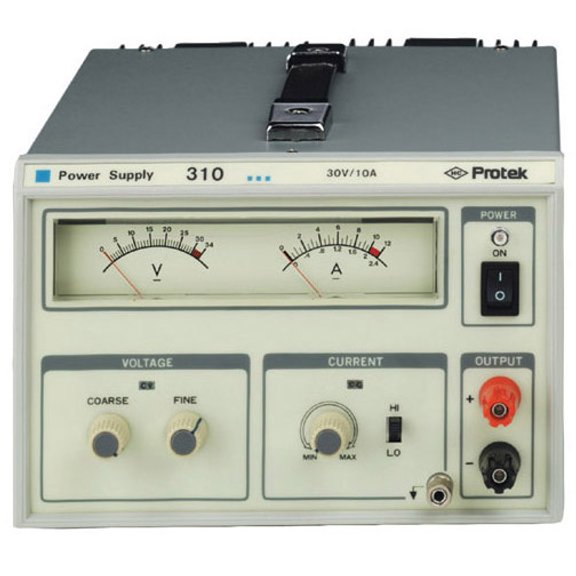

Protek 310 - Single Output Power Supply with Analog Display (0-30V @ 0-10A)
|
|
Item Number: 310
Manufacturer: Protek
Part Number: 310
* Whole number only
|
Protek 310 - Single Output Power Supply with Analog Display (0-30V @ 0-10A)
Protek 310 Features:
-
Continuously variable Voltage and Current output
-
Short circuit and overload protected
-
Separate meters for monitoring voltage and current
-
Excellent regulation and ripple specs
-
Constant Voltage and Constant current indicators
-
Ideal for the service bench
-
Cost effective
Protek 310 Specifications:
|
Output Voltage Range
|
0 to ±30V
|
|
Output Current Ranges
|
Range 1:0 to 10A
Range 2: 0 to 2A
|
|
Load Regulation
|
Constant Voltage: 0.04% + 2mV
Constant Current: 0.4% + 2mA
|
|
Line Regulation
|
Constant Voltage: 0.05% + 3mV
Constant Current: 0.4% + 5mA
|
|
Ripple
|
Constant Voltage: 1mV RMS
Constant Current: 1mA RMS
|
|
Readout
|
Analog for both voltage and current
|
|
Meter Accuracy
|
±5% of full scale for both voltage and current
|
|
|
|
|
|
|
|
|
AC Input Volts
|
120/220V selectable
|
|
Power Consumption
|
520VA
|
|
Operating Temperature
|
0 to 40°C (32 to 104°F)
|
|
Size
|
5.0” (H) x 6.3” (W) × 13.0” (D)
|
|
Weight
|
26 lbs
|
|
Supplied Accessories
|
Manual, Line cord, Test leads
|
|
|
