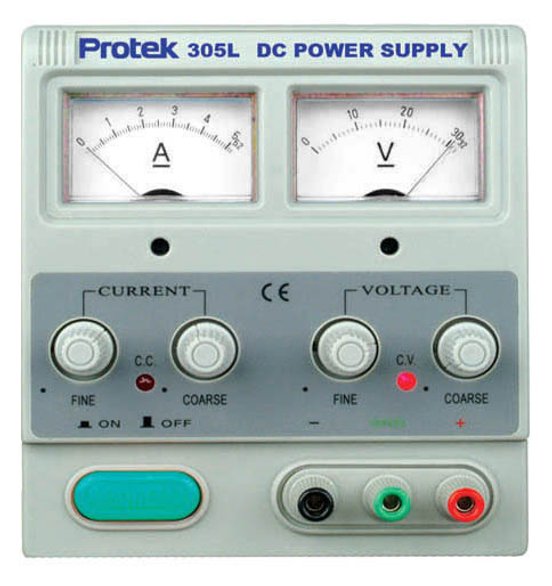

Protek 305L - Analog Meter Readout Power Supply 0 to 30V @ 0 to 5 Amps
|
|
Item Number: 305L
Manufacturer: Protek
Part Number: 305L
* Whole number only
|
Protek 305L - Analog Meter Readout Power Supply 0 to 30V @ 0 to 5 Amps
Protek 305L Features:
-
Ideal for Production testing or school labs
-
Designed for reliable operation
-
Excellent load and line regulation
-
Low noise and ripple
-
Continuously adjustable voltage
-
Analog meter readout for both voltage and current
-
Cooler operation and high efficiency
Protek 305L Specifications:
|
|
|
Volts
|
0 to ±30V DC
|
|
Amps
|
0 to ± 5 Amps
|
|
|
|
|
|
|
|
|
Line Regulation
|
0.01% + 1V
|
|
Load Regulation
|
0.01% + 5mV
|
|
Ripple and noise
|
≤ 1.0mV RMS
|
|
|
|
|
|
|
|
|
Line Regulation
|
≤ 0.2% + 1.0mA
|
|
Load Regulation
|
≤ 0.2% + 5mA
|
|
Ripple and Noise
|
≤ 3mA RMS
|
|
|
|
|
|
|
|
|
Accuracy
|
Volts: ± (0.2% F.S.)
Amps: ± (2.0% F.S.)
|
|
|
|
|
|
|
|
|
AC Input Voltage
|
110V to 127V @ 60Hz
220V to 240V @ 50Hz selectable
|
|
Dimensions
|
Size: 5"(W) x 6.1"(H) x 9.5"(D)
Weight: 10 lbs
|
|
Environmental Storage Temp
|
-10ºC to 70ºC @ < 70% R.H
(-14ºF to 158ºF)
|
|
Environmental Operating Temp
|
0ºC to 40ºC @ < 80% R.H
(32ºF to 104ºF)
|
|
Temperature Coefficient
|
300ppm/ºC
|
|
Accessories
|
Operating manual and AC Line cord
|
|
|
|
