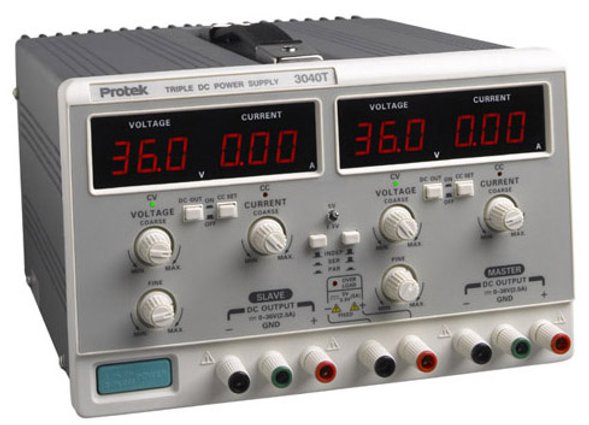

Protek 3040T - Triple Output Power Supply (Dual 0-36V @ 2.5A, Fixed 5V / 3.3V @ 5A)
|
Item Number: 3040T
Manufacturer: Protek
Part Number: 3040T
* Whole number only
|
|
Protek 3040T - Triple Output Power Supply (Dual 0-36V @ 2.5A, Fixed 5V / 3.3V @ 5A)
Protek 3040T Features:
-
Dual 0 to ±36V with 0 to ±2.5 Amps Load current outputs and a fixed 5V/3.3V at 5 Amp output
-
Outputs may be independent or connected in Series or Parallel and are selectable from the front panel
-
Fixed supply may be switched between 3.3V and 5.0V
-
Series or Parallel Master/Slave tracking modes
-
Energy saving design
Protek 3040T Specifications:
|
|
|
Volts
|
0 to ±36V DC
|
|
Amps
|
0 to 2.5A
|
|
|
|
|
|
|
|
|
Line and Load Regulation
|
0.02% + 2mV
|
|
Ripple and noise
|
0.2mV RMS, 4mV P-P
|
|
|
|
|
|
|
|
|
Load Regulation
|
0.05% + 5mA
|
|
Line Regulation
|
0.05% + 0.25mA
|
|
Ripple and Noise
|
2mA RMS, 10mA P-P
|
|
|
|
|
|
|
Digital Display
(Outputs 1 & 2)
|
|
|
Resolution (Volts)
|
100mV
|
|
Resolution (Current)
|
10mA
|
|
Accuracy
|
±(0.5% + 1d)
|
|
|
|
|
|
|
|
|
Volts Max
|
3.3V / 5V ±2.5% (selectable)
|
|
Current Max
|
5A ±2.5%
|
|
Load and Line Regulation
|
0.1% + 5mV
|
|
Ripple
|
2mV RMS
|
|
|
|
|
|
|
|
|
AC input Voltage
|
120/220V, 50/60Hz
|
|
Power Consumption
|
455VA
|
|
Operating Temperature
|
0 to 35°C (32 to 95°F)
|
|
Size
|
6.3” (H) x 9.0” (W) x 13.0” (D)
|
|
Weight
|
16.5 lbs
|
|
Supplied Accessories
|
Manual, Line cord, Test Leads (3 sets)
|
|
|
