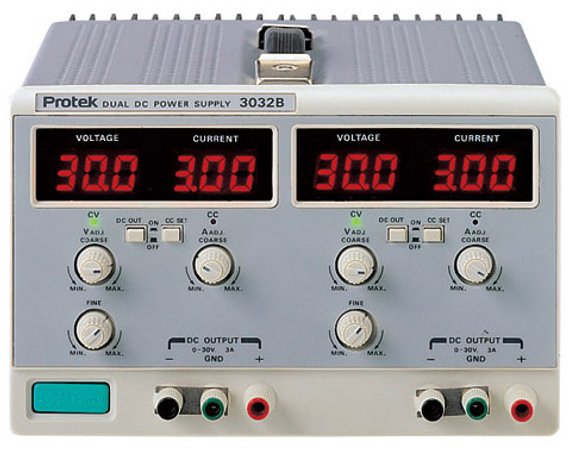

Protek 3032B - Dual Output Power Supply with Digital Display (0-30V @ 0-3A)
|
|
Item Number: 3032B
Manufacturer: Protek
Part Number: 3032B
* Whole number only
|
Protek 3032B - Dual Output Power Supply with Digital Display (0-30V @ 0-3A)
Protek 3032B Features:
-
0 to ±30V with ±3.0 Amps load current
-
Low noise Linear supply for powering sensitive circuits
-
Fully isolated outputs for connecting outputs in series
-
Excellent Load, line and Ripple specs
-
Energy Saver design for cooler operation
Protek 3032B Specifications:
|
|
|
Volts
|
0 to ±30V DC
|
|
Amps
|
0 to ±3A
|
|
|
|
|
|
|
|
|
Load Regulation
|
0.02% + 2mV
|
|
Line Regulation
|
0.02% + 2mV
|
|
Ripple and Noise
|
1mV RMS
|
|
|
|
|
|
|
|
|
Load Regulation
|
0.05% + 5mA
|
|
Line Regulation
|
0.05% + 0.25mA
|
|
Ripple and Noise
|
2mA RMS
|
|
|
|
|
|
|
|
|
Resolution (Volts)
|
100mV
|
|
Resolution (Current)
|
10mA
|
|
Accuracy
|
±(0.5% + 3d)
|
|
|
|
|
|
|
|
|
AC Input Voltage
|
120/220V
|
|
Power Consumption
|
300VA, 50/60Hz
|
|
Operating Temperature
|
0 to 35°C (32 to 95°F)
|
|
Size
|
6.3" (H) × 9.2" (W) × 12.8" (D)
|
|
Weight
|
20 lbs
|
|
Supplied Accessories
|
Manual, Line cord, Test Leads (2 sets)
|
|
|
