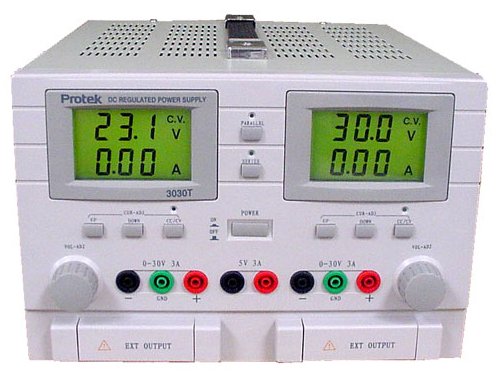

Protek 3030T - Triple Output Power Supply (Dual 0-30V @ 0-3A, Fixed 5V @ 3A)
|
Item Number: 3030T
Manufacturer: Protek
Part Number: 3030T
* Whole number only
|
|
Protek 3030T - Triple Output Power Supply (Dual 0-30V @ 0-3A, Fixed 5V @ 3A)
Protek 3030T Features:
-
Dual 0 to ±30V with 0 to ±3.0 Amps Load current outputs and a fixed 5V at 3 Amp output
-
Large LCD display with back light for displaying Voltage and Current settings
-
Outputs may be connected in series or parallel
-
Constant voltage and current selection switch
-
Incremental switch for setting Max. current value
-
Excellent line and load regulation characteristics
-
Fully isolated outputs for series or parallel operation
-
Automatic cooling fan operation
-
10-turn voltage control for precise voltage settings
-
Extended (Barrier strip) output connection
Protek 3030T Specifications:
|
|
|
Volts
|
0 to ±30V DC
|
|
Amps
|
0 to 3A
|
|
|
|
|
|
|
|
|
Line and Load Regulation
|
0.02% + 3mV
|
|
Ripple and noise
|
0.5mV RMS
|
|
|
|
|
|
|
|
|
Load and Load Regulation
|
0.3% + 3mA
|
|
Ripple and Noise
|
3mA RMS
|
|
|
|
|
|
|
|
|
Type
|
3 digit LCD
|
|
Resolution Volts
|
100mV
|
|
Resolution Amps
|
10mA
|
|
Accuracy Volts
|
±(0.2% + 2d)
|
|
Accuracy Amps
|
±(1% + 3d)
|
|
|
|
|
|
|
|
|
Volts Max
|
5V
|
|
Current Max
|
3A
|
|
Load and Line Regulation
|
0.02% + 3mV
|
|
Ripple and Noise
|
0.5mV RMS
|
|
|
|
|
|
|
|
|
AC input Voltage
|
120/220V
|
|
Power Consumption
|
310VA, 50/60Hz
|
|
Operating Temperature
|
0 to 35°C (32 to 95°F)
|
|
Size
|
7.5” (H) x 10.6” (W) x 13.0” (D)
|
|
Weight
|
23.1 lbs
|
|
Supplied Accessories
|
Manual, Line cord, Test Leads
|
|
|
