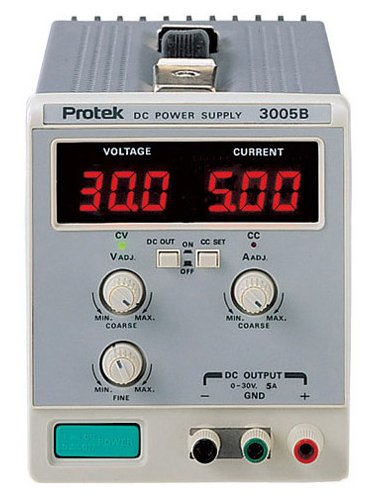

Protek 3005B - Single Output Power Supply with Digital Display (0-30V @ 0-5A)
|
|
Item Number: 3005B
Manufacturer: Protek
Part Number: 3005B
* Whole number only
|
Protek 3005B - Single Output Power Supply with Digital Display (0-30V @ 0-5A)
Protek 3005B Features:
-
0 to 30V with 0 to 5 Amps Load current
-
Internal fan for cooler operation
-
Excellent Line, Load and Ripple specifications
-
Small case size
-
Designed with energy saving circuitry
-
Fully isolated output terminals for series operation
-
Short circuit and Reverse Voltage protected
Protek 3005B Specifications:
|
|
|
|
|
|
|
Volts
|
0 to ±30V DC
|
|
Amps
|
0 to ±5Amps
|
|
|
|
|
|
|
|
|
Load and Line Regulation
|
0.02% + 2mV
|
|
Ripple and Noise
|
1mV RMS
|
|
|
|
|
|
|
|
|
Load Regulation
|
0.05% + 5mA
|
|
Line Regulation
|
0.05% + 0.25mA
|
|
Ripple and Noise
|
2mA RMS
|
|
|
|
|
|
|
|
|
Resolution (Volts)
|
100mV
|
|
Resolution (Amps)
|
10mA
|
|
Accuracy
|
±(0.5% + 3d)
|
|
|
|
|
|
|
|
|
AC Input Voltage
|
120/220V selectable
|
|
Power Consumption
|
133VA
|
|
Operating Temperature
|
0 to 32°C (32 to 90°F)
|
|
Size
|
6.3" (H) x 5.0" (W) x 13.0" (D)
|
|
Weight
|
15 lbs
|
|
Supplied Accessories
|
Manual, Line cord, Test leads
|
|
|
