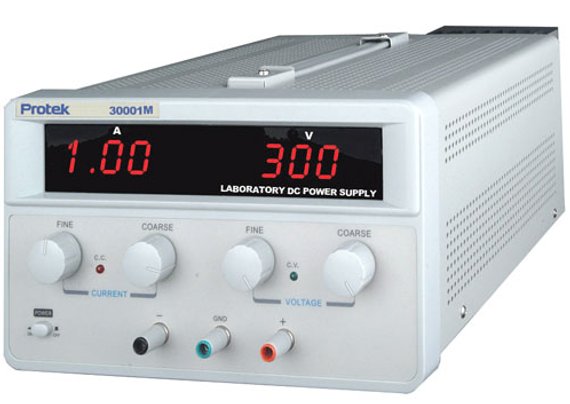

Protek 30001M - Single output 0 to 300V @ 0 to 1 Amps "M" Series DC Power Supply
|
|
Item Number: 30001M
Manufacturer: Protek
Part Number: 30001M
* Whole number only
|
Protek 30001M - Single output 0 to 300V @ 0 to 1 Amps "M" Series DC Power Supply
Protek 30001M Features:
-
0 to 300Volts @ 0 to 1Amp
-
Excellent Ripple and Regulation Specifications
-
3 Digit LED Display for both Amps and Voltage
-
May be operated continually without over heating
-
Constant Voltage and Constant Current operation
-
Course and Fine Voltage and Current controls
-
Short circuit and Reverse voltage protection
-
Ideal for schools, production and service bench
Protek 30001M Specifications:
|
|
|
Output Volts
|
0 to ± 300Volts
|
|
Output Amps
|
0 to ±1.0Amps
|
|
|
|
|
|
|
|
|
Line Regulation
|
±0.01% +2mV
|
|
Load Regulation
|
±0.01% +2mV
|
|
Ripple and Noise
|
<2mV rms
|
|
|
|
|
|
|
|
|
Line Regulation
|
≤0.2% +3mA
|
|
Load Regulation
|
≤0.2% +5mA
|
|
Ripple and Noise
|
≤3mA rms
|
|
|
|
|
|
|
|
|
Number of digits
|
3
|
|
Accuracy
|
±(0.4% +1D)
|
|
Resolution
|
Volts: 100mV
Amps: 0.01A
|
|
|
|
|
|
|
|
|
AC Input Voltage
|
110Volts or 220V switch selected
|
|
Dimensions (H x W x D)
|
5.5" x 9.6" x 13.5"
|
|
|
|
|
|
|
|
|
Storage Temp.
|
-10ºC to 70ºC (14ºF to 158ºF) @ <80% R.H.
|
|
Operating Temp.
|
0ºC to 40ºC (32ºF to 104ºF) @ <70% R.H.
|
|
Temperature Coefficent
|
Constant Voltage: 300ppm
Constant Current: 500ppm
|
|
Accessories
|
Operator's manual and AC line cord
|
|
|
|
