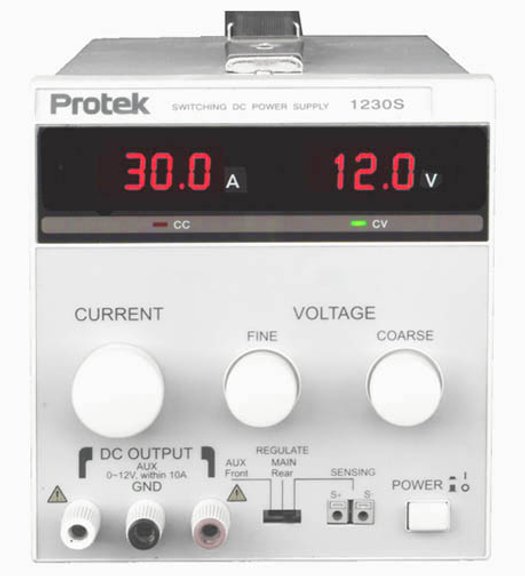

Protek 1230S - 12 Volt @ 30 Amps Switching DC Power Supply
|
|
Item Number: 1230S
Manufacturer: Protek
Part Number: 1230S
* Whole number only
|
Protek 1230S - 12Volt @ 30A Switching DC Power Supply
Protek 1230S Features:
-
Constant voltage or Constant current operation
-
Excellent Line, Load and Ripple specification
-
Coarse and Fine voltage controls
-
Light weight and very good efficiency
-
Remote sensing
-
Short circuit and overload protection
-
3 digit LED read out for both Volts and Amps
-
Cooling fan
-
Constant voltage and Constant current indicators
Protek 1230S Specifications:
|
|
|
Volts
|
0 to ±12V DC
|
|
Amps
|
0 to ±30Amps
|
|
|
|
|
|
|
|
|
|
Line Regulation
|
0.01% + 2mV
|
|
Load Regulation
|
0.01% + 2mV
|
|
Ripple and Noise
|
≤5 mV RMS, 100mV peak
|
|
|
|
|
|
|
|
|
Line Regulation
|
≤0.01% +2mA
|
|
Load Regulation
|
≤0.01% +0.2mA
|
|
Ripple and Noise
|
≤30mA RMS
|
|
|
|
|
|
|
|
|
Number of digits
|
Volts: 3
Amps: 3 1/2
|
|
Resolution
|
Volts: 0.1V
Amps: 10mA
|
|
Accuracy
|
±(0.5%+2D) Volts & Amps
|
|
|
|
|
|
|
|
|
AC Input Voltage
|
97 to 133V @ 60Hz or 195 to 250V @ 50Hz
|
|
Input Power
|
500 watts, 900VA
|
|
Operating Temperature
|
0ºC to 40ºC (32ºF to 104ºF) @ <80% R.H
|
|
Dimensions
|
Size: 5.4"(W) x 6.4"(H) x 11.4"(D)
Weight: 7.7 lbs
|
|
Accessories
|
Operating manual, AC line cord and Test leads
|
|
|
