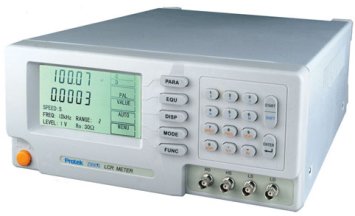

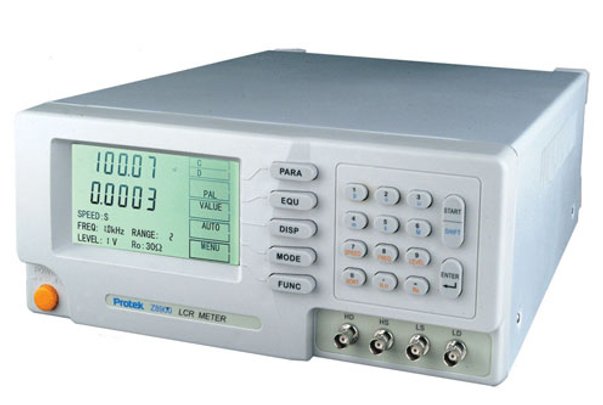

Protek Z8900 - High Precision LCR Meter with RS232 and Handler Interfaces
|
|
Item Number: Z8900
Manufacturer: Protek
Part Number: Z8900
* Whole number only
|
Protek Z8900 - High Precision LCR Meter with RS232 and Handler Interfaces
Protek Z8900 Features:
-
100Hz, 120Hz, 1KHz and 10KHz test frequencies
-
0.1% basic accuracy
-
5 digit Back Lit LCD display
-
Built in comparator for sorting components
-
Up to 12 measurements per second
-
RS232 and Handler interfaces
-
Easy to use front panel
-
Short and Open circuit input calibration
-
LCD displays parameter values in Absolute, ∆ or ∆%
Protek Z8900 Specifications:
|
|
|
Parameter:
|
L (Inductance), C (Capacitance), R (Resistance),
Z (Impedance), Q (Quality Factor), D (Dissipation Factor),
Θ (Phase Angle)
|
|
Measurement Circuit Configurations:
|
Series and Parallel
|
|
|
|
|
|
|
|
|
|
|
Measured Parameter:
|
R+Q
|
|
Measurement Range
|
R: 0.0001Ω to 99.99MΩ
Q: 0.0001 to 9999
|
|
|
|
|
|
|
|
|
Measured Parameter
|
Z+ Θ
|
|
Measurement range
|
Z: 0.0001Ω to 99.99MΩ
Θ: -179.99º to 179.99º
|
|
|
|
|
|
|
|
|
Measured Parameter
|
L+Q and L+R
|
|
Measurement Range
|
L: 1μH to 9999H (100Hz and 120Hz)
0.1μH to 999.9H (1KHz)
0.01μH to 99.99H (10KHz)
Q: 0.0001 to 9999
R: 0.0001Ω to 99.99MΩ
|
|
|
|
|
|
|
|
|
Measured Parameter
|
C+D and C+R
|
|
Measurement Range
|
C: 1pF to 19,999μ (100Hz and 120Hz);
0.1pF to 199.9 μF (1KHz)
0.01pF to 19.99 μF (10KHz)
D: 0.0001 to 9.999
R: 0.0001Ω to 99.99MΩ
|
|
|
|
|
|
|
|
|
Test Voltages
|
0.1V, 0.3V and 1V
|
|
Test Voltage Accuracy
|
±10%
|
|
Test Frequencies
|
100Hz, 120Hz, 1KHz and 10KHz
|
|
Test Frequency Accuracy
|
±0.02%
|
|
Measurement Rates
|
Fast: 12 Measurement/Sec
Medium: 5Measurements/Sec
Slow: 2.5Measurements/Sec
|
|
Output Impedance
|
30Ω and 100Ω
|
|
Trigger
|
Auto and Manual
|
|
|
|
|
|
|
|
|
Display type
|
320 x 240 pixel with backlight
|
|
Displayed Value
|
5 digit, dual display of L, C, R or Z and Q, D or Θ
|
|
Parameters Displayed
|
Measured value, ∆ absolute, and ∆%
|
|
|
|
|
|
|
|
|
Basic Accuracy
|
±0.1% (See manual for accuracy conditions)
|
|
Calibration
|
Zero input correction: Open and Short Circuit
|
|
Remote operation
|
RS232 and Handler interfaces
|
|
|
|
|
|
|
|
|
AC Power Requirements
|
220V or 110V 50/60Hz switch selected
|
|
Power consumption
|
≤20watts
|
|
Operating Temperture
|
10ºC to 30ºC (50ºF to 86ºF) @ ≤70% R.H.
|
|
Dimensions
|
(W x H x D): 13" x 6" x 15.7"
|
|
Weight
|
7.7lbs
|
|
Accessories
|
Operator's manual, Test Leads with Kelvin clips, Radial lead test fixure with Axial lead adaptor, shorting bar, AC line cord
|
|
|
