Probe Master Oscilloscope Probe 3915 Master Kit
|
Item Number: 3915
Manufacturer: Probe Master
Part Number: 3915
* Whole number only
|
|

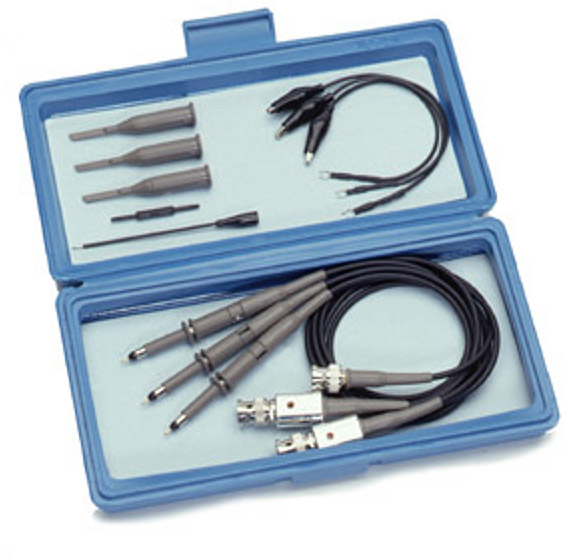

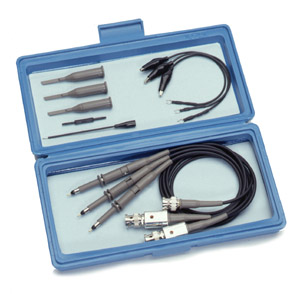

3915 Master Kit
- 100 MHz
- 12 Piece Kit
-
Probes included-
3901-2 (1X/10X)
3903-2 (1X)
3904-2 (10X)
|
|
3900 Series Heavy Duty Scope Probe
This probe features a snap-on rotating ground lead, and a
heavy duty fixed tip. The switchable model allows for quick finger tip
change between 1X, 10X and reference ground. The probe body is made of
high impact ABS. Soft molded strain reliefs at all stress points assure
long cable life. In short it has been designed to offer you high
performance coupled with high quality at a low cost.
| Probe Specifications
|
|
|
Length
|
BW MHz
|
Rise Time
|
Loading
|
|
| Model
|
Atten.
|
Ft.
|
M.
|
AT-3DB
|
ns
|
pF
|
m-ohm
|
|
| 3901-2
|
Switchable
1X/R/10X
|
5
|
1.5
|
10/100
|
35/3.5
|
57/15
|
1/10
|
|
| 3903-2
|
1X
|
5
|
1.5
|
26
|
13.5
|
54
|
1
|
|
| 3904-2
|
10X
|
5
|
1.5
|
100
|
3.5
|
15
|
10
|
|
Voltage Rating - (All probes 600 Volts D.C)
Rugged Fixed Tip .055" Dia
Accessories included- (3) Sprung Hooks, (3) 6" Ground Leads, Trimmer Tool, Extender Tip and Storage Box
|
