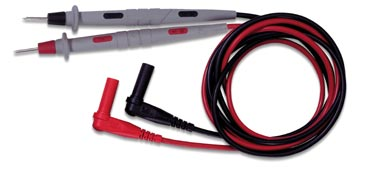

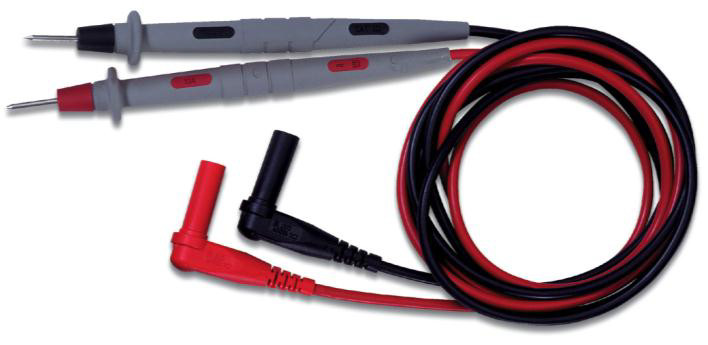

Pomona 5672A Basic Electronic DMM Test Lead Kit

Our Price: $31.52

Item Number: 5672A

Manufacturer: Pomona Electronics

Part Number: 5672A

Quantity:

FEATURES

Fits Fluke, H-P, Tektronix and Wavetek meters configured with non-sheathed standard and 4 mm banana jacks.
Test probe body & banana plug body are molded directly to 48" (122 cm), high strand count/high temperature silicone leads for added pull strength and flexibility.
Wear indication with double insulated (dual extruded) silicone leads shows white inner layer for increased safety.
Medium alligators are insulated for added safety and can quickly attach to the 0.080” (2.03 mm) O.D. probe tip.
Medium alligators have an overall length of 2.25” (5.7 cm) and grip up to 0.30” (7.62 mm) O.D. terminals.
Slide-on extended tips have an overall length of 4” (10.16 cm) & attaches to the probe tip to allow access to hard to reach test points.
Slide-on Extended Tip is insulated to the point to prevent accidental shorting.
