*Note: The total quantity of SPDT Relays and SSR Drivers must be less than or equal to eight.
**Note: Pens/colors are added to the instrument in the following order:red, green, blue, black.
***Note: Door Lock N/A with NEMA 4
Specify Chart Size & Division or Rings When Ordering
Surface Mounting Brackets, $25 (P/N: 64429601)

Partlow VersaChart Multi-Color Circular Chart Recorder

       Unique 1-4 Pen Recorder/Controller/Profiler
              Draws Its Own Charts in Full Color

The Partlow Versa Chart is an advanced recorder/controller/profiler that can print trend lines, scales and alphanumeric data on plain paper charts. Chart sizes can be 10", 11" or 12. Trend data can be scaled and zoned to enhance readability, and portions of the scale may be magnified for better resolution. A bright 40 character vacuum fluorescent display process values, units and tag information. Programming can be accomplished via quick access front panel keys or a PC. Field expandability is simple with up to 8 analog inputs and full Math support is available along with Totalization.

Features:

• Available as a 1, 2, 3 or 4 Color Pen Recorder/Controller/Profiler
• Up to 4 Full Color Trend Lines (Green, Red, Blue, Black)
• Uses Plain Paper 10", 11"or 12" Charts
• Event Driven Display and Recorded Messages
• Universal Inputs, T/C (12 Types), RTD, mA/mV, Contact
• Up to 8 Relay or SSRs Outputs and up to 4 Analog Outputs
• Full Math Capability with 4 Totalizers (9 Digit)
• High Speed Scan Rate, Typically 16/Second
• Up to 4 Alarms per Channel
• Up to 4 Transmitter Power Supplies
• Large 40 Digit 2 Line Display
• Full Password Protection
• Quick Change 4 Color Ink Cartridge
• Configure With a PC with Logic Capability
• Power with 115-230 VAC
• RS-232/485 Communications Option
• Tough NEMA 3 Case, NEMA 4 Option
• 2 Year Warranty
• Set Up in Minutes

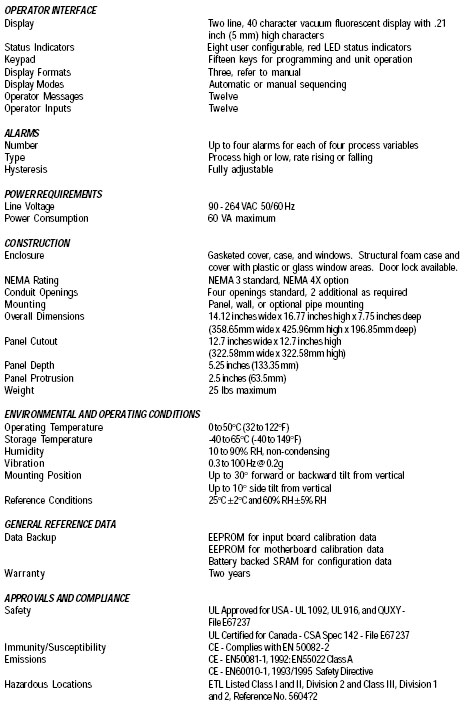

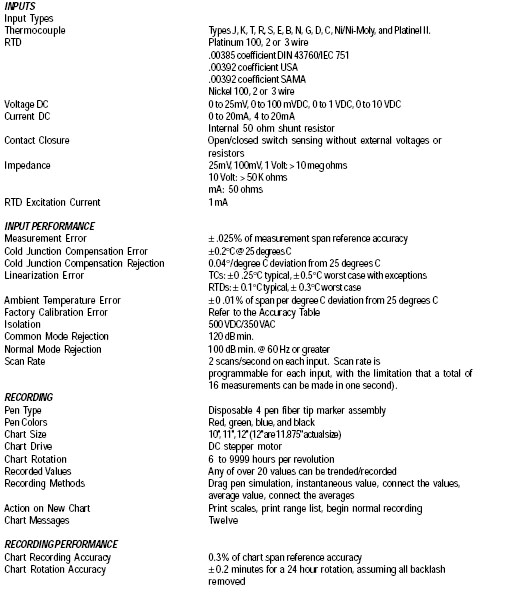

Technical Specifications:
