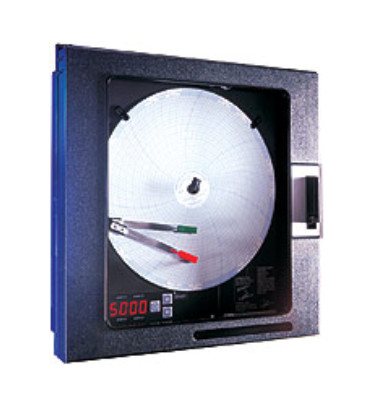

Partlow MRC 5000 - 10" Circular Chart Recorder/Controller
              10" Circular Chart Recorder/Controller, Universal Inputs

The MRC-5000 is designed with the latest innovation in recording technology. It is field proven, slim and trim in design and panel footprint. The MRC 5000 mounts easily with its compact 2.5" panel depth and short 1.3" protrusion from the front of the panel. It can be panel or surface mounted. The cutout size for the MRC 5000 uses the popular 12.7"square cutout. An optional adaptor plate provides convenient retrofitting of the MRC 5000 in Partlow MRC 7000 /ARC 4100 panel cutouts. A simple prompting scheme provides rapid access to all configuration data. Programming is simple enough that instructions are provided on a 4" x 6" card that can be stored in a pocket on the back of the wiring access panel. During normal operation, the display can show process value(s) or be blanked.

The MRC 5000 is housed in an injection molded Noryl enclosure which can be panel or surface mounted. Mounting brackets accompany the unit. Its design allows it to fit into the panel cutout of competative products.

Features

• Available as a One or Two Pen/Channel  Recorder or Recording Controller
• Large 10" Charts
• Universal Inputs, Thermocouple (J, K, T, R,S), RTD, mA/mV
• Up to Two Relay Alarm outputs Per Channel
• HI/LOW Limit Alarms

• Compact Size, 2.5" Deep, 12.7" Cutout or Surface Mount
• Large 4 Digit Red LED Display
• Configure With a PC (Optional)

• Power with 90-260 VAC or Low Power Option (20-50 VDC/AC)
• MODBUS Communications Available (Optional)
• Tough NEMA 3 Case, NEMA 4 Option available

• 2 Year Warranty
• Set Up in Minutes, No Switches

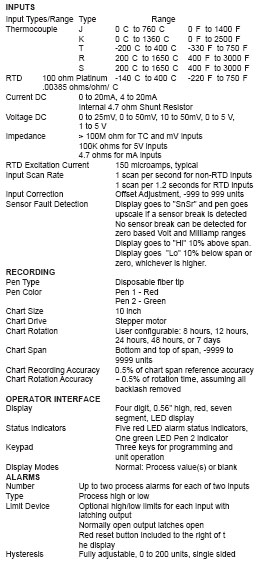

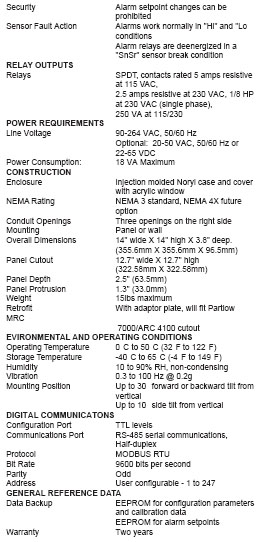

Technical Specifications

Partlow MRC 5000 Data Sheet
