Oakton pH 2100 Benchtop Meter

Our Price: $1,088.00
Item Number: pH 2100
Manufacturer: Oakton
Part Number: WD-35621

Product Options

* denotes required field

Oakton WD-35621 Model Selection*
Calibration Options
Accessory Options
Oakton pH 2100 Benchtop Meter with PC Interface

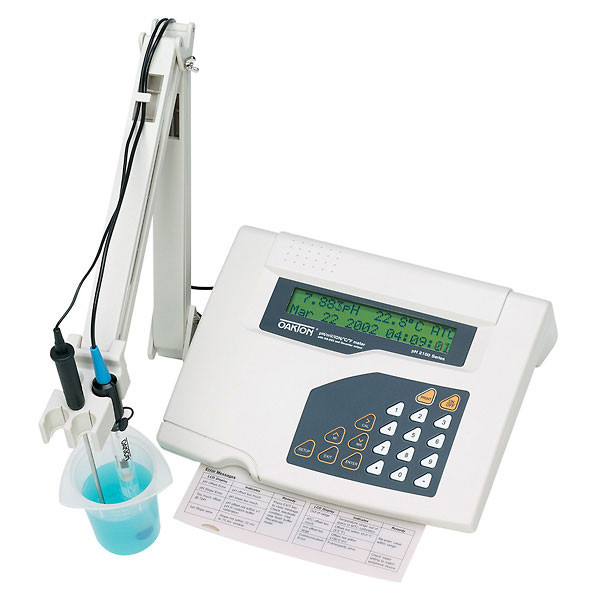

Oakton pH 2100 Benchtop Meter

Use the pH 2100 meter to document large volumes of critical ISE, pH or mV data sets. Large dot matrix display shows pH, ion or mV reading plus temperature (°C). Meter sends measurements to a printer or PC with the touch of a button, or on timed intervals. Free software allows you to download data to your computer in a format easy to import into spreadsheet programs.

Customize up to five pH calibration points, or select from four standard buffer sets. Meter displays last calibration date and time.

Meter features a built-in clock with timer and alarm. Other features include memory of up to 50 readings with date and time, selectable manual or Automatic Temperature Compensation (ATC), analog recorder output and a selectable "Ready" function.

Detachable electrode holder arm holds electrodes firmly in place. Includes instruction card that stores underneath meter for quick reference. 110/220 VAC.


Features
  • Two line, dot matrix display provides clear instructions for setup and calibration
  • Ion concentration mode offers direct display of ion readings in ppm, ppt, % or any other units of your choice
  • RS-232 output: sends data to printer or PC on programmed time intervals, when reading is stable, or manually
  • Calculates and displays slope/offset of electrode automatically; check electrode quality and conform to standard test method quality checks
  • Calibration alarm signals when meter needs recalibration—user-defined interval ensures regularly scheduled recalibration
  • Real-time clock stamps stored and calibration data with date and time—suitable for GLP documentation

Technical Specifications

Measures pH, mV, Relative mV, Ion, °C, °F
pH Range 0.000 to 14.000 pH
pH Resolution 0.001/0.01 pH
pH Accuracy ±0.002/0.01 pH
pH Calibration Up to 5 customizable calibration points, or USA, NIST, Bf1, or BF2 standard buffer sets
mV Range ±1850.0 mV
mV Resolution 0.1 mV
mV Accuracy ±0.2 mV
mV Calibration offset up to ±150 mV
Ion Range 0.000 to 19900
Ion Resolution ± least significant digit
Ion Accuracy ±0.5% of the reading
Temperature Range -5 to 105°C/23 to 221°F
Temperature Resolution 0.1°C or F
Temperature Accuracy ±0.3°C / ±0.5°F
Temperature Calibration offset up to ±5.0°C/±9.0°F
Memory up to 100 readings with date and time
RS-232 Yes
Dimensions 9" x 7" x 2.4" (23 x 18 x 6 cm)
Shipping weight 3.0 lb (1.4 kg)
