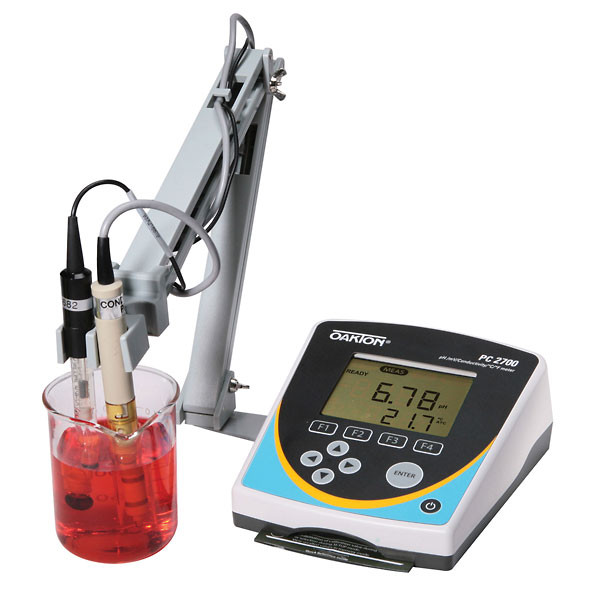

Oakton PC 2700 Benchtop pH & Conductivity Meter
|
Item Number: PC 2700
Manufacturer: Oakton
Part Number: WD-35414
Product Options
* denotes required field
Accessory Options
* Whole number only
|
|
Oakton PC 2700 Benchtop pH & Conductivity Meter
The PC 2700 meter offers a new compact design that is over 40% smaller than other benchtop meters. The large display is easy to read even at a distance and features stability indication. All measurements include temperature display. The meter includes auto-buffer recognition for both USA and NIST pH buffer sets, automatic or manual temperature compensation, temperature in °F or °C, and display Hold. A calibration due alarm function means no more out-dated calibrations. The water-resistant membrane keypad offers password protection for both set-up and calibration.
Multiple pH slopes and offset display enables quick, easy electrode diagnosis. The electrode holder can be mounted on either side of the meter. The convenient pull-out, quick-reference card keeps keypad functions at your fingertips
Features
- PC 2700 measures pH, ORP, ion, conductivity, total dissolved solids (TDS), salinity, resistivity, and temperature
- Measures salinity from 0.0 to 80 ppt and resistivity from 2.000 ohms to 20.0 Mohms
- Brilliant backlit display with dynamic stability indication
- Up to 500 point memory with date-time stamp for GLP
- Output data to printer or PC
- Accepts either 2-cell or 4-cell electrodes
- Features auto-standardization, auto-calibration, and autoranging
- Calibration due alarm with password protection for setup and calibration
- Temperature coefficient of 0.000 to 10.000%
- Automatic or manual temperature compensation
Technical Specifications
| Measures |
pH, ORP (mV/Rel. mV), conductivity, TDS, salinity, resistivity and temperature(°C or F) |
| pH Range |
-2.000 to 20.000 |
| pH Resolution |
0.1/0.01/0.001 |
| pH Accuracy |
±0.002 + LSD |
| pH Calibration |
Up to 6 preset or 5 custom with autobuffer recognition of USA, DIN, NIST, User-defined, and Custom buffer sets |
| mV Range |
-2000.0 to 2000.0 |
| mV Resolution |
0.1 |
| mV Accuracy |
±0.2 |
| mV Calibration |
Offset up to ±150 mV |
| Ion Range |
0.001 to 19,999 ppm (±2000 mV) |
| Ion Resolution |
2 or 3 digits |
| Ion Accuracy |
±0.5% full scale (monovalent) ±1% full scale (divalent) |
| Ion Calibration |
2 to 8 points |
| Conductivity Range |
0.050 uS/cm to 500.0 mS/cm |
| Conductivity Resolution |
0.01 uS/0.1 uS; 0.001 uS/ 0.01 mS/0.1 mS |
| Conductivity Accuracy |
±1% full scale |
| Conductivity Calibration |
Automatic (4 points); maximum 1 per range; manual (5 points); maximum 1 per range |
| TDS Range |
0.050 ppm to 500 ppt @ 1.00 TDS factor |
| TDS Resolution |
0.01 ppm/0.1 ppm; 0.001 ppt/ 0.01 ppt/0.1 ppt |
| TDS Accuracy |
±1% full scale |
| TDS Calibration |
Up to 5 points |
| Temperature Range |
32 to 212°F (0.0 to 100.0°C) |
| Temperature Resolution |
0.1°F or °C |
| Temperature Accuracy |
±0.5°F or ±0.3°C |
| Temperature Calibration |
Offset 0.1°C increments up to ±5°C/±9°F |
| Memory |
Up to 500 data sets with time-date stamping for GLP compliance |
| RS-232 |
Bi-directional RS-232; includes software |
| Dimensions |
6 1/8" x 6 7/8" x 2 3/4" (15.5 x 17.5 x 6.9 cm) |
|
Oakton pH 2700 meter offers a new compact design that is over 40% smaller than other benchtop meters. The large display is easy to read even at a distance and features stability indication.
| |
