Oakton ION 700 Benchtop Meter
|
Item Number: ION 700
Manufacturer: Oakton
Part Number: WD-35419
Product Options
* denotes required field
Oakton WD-35419 Model Selection*
* Whole number only
|
|

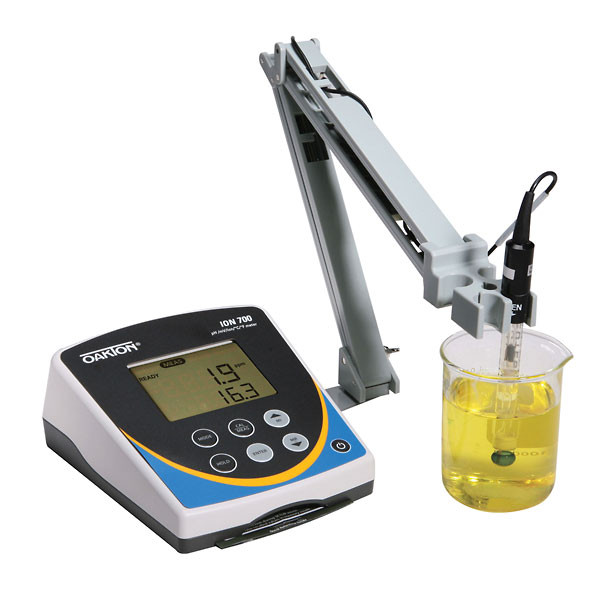

Oakton ION 700 Benchtop Meter
Ion 700 meter measures pH, mV, relative mV, and temperature while adding ion measurement capabilities. Ion concentration is directly read in ppm for easy use. Verify electrode operation while taking measurements with the dual ppm and mV display. Up to three ion-concentration standards (choose from 0.1, 1.0, 10.0, 100.0, or 1000.0 ppm) may be calibrated.
The easy-to-use, microprocessor-based meter features HOLD, ATC, recorder output, and electrode diagnostics. Automatic temperature compensation (ATC) maintains reading accuracy even with fluctuating temperatures. Five-point pH calibration, with automatic buffer recognition for both USA (pH 1.68, 4.01, 7.00, 10.01, 12.45) and NIST (pH 1.68, 4.01, 6.86, 9.18, 12.45) pH buffers, makes for easy calibration no matter which requirement you need to meet. The convenient pull-out quick reference card keeps procedures handy at all times. The large, dual-display LCD provides excellent visibility—even from a distance. Meter accepts pH, ORP, or ion-selective electrodes with BNC
Features
- Custom 3-1/4" x 2-7/16" LCD display
- Small size conserves valuable benchspace
- Store and recall up to 100 data sets
Technical Specifications
| Measures |
pH, mV, Ion, and Temperature (°C or F) |
| pH Range |
0.00 to 14.00 pH |
| pH Resolution |
0.01 pH |
| pH Accuracy |
±0.01 pH |
| pH Calibration |
Up to 5 points (USA: 1.68,4.01, 7.00, 10.01, 12.45 or NIST: 1.68,4.01, 6.86, 9.18, 12.45) with autobuffer recognition |
| mV Range |
±2000 mV |
| mV Resolution |
0.1 within 199.9 mV, 1 beyond 200 mV |
| mV Accuracy |
±0.2 within 199.9mV, ±2 beyond 200 mV |
| mV Calibration |
Offset up to ±150 mV |
| Ion Range |
0.01 to 2000 ppm |
| Ion Resolution |
0.01 ppm from 0.01 to 0.99 ppm
0.1 ppm from 1.0 to 199.9 ppm
1 ppm from 200 to 2000 ppm |
| Ion Accuracy |
±0.5% of reading FS (mono-valent)
±1.0% of reading FS (di-valent) |
| Ion Calibration |
From 2 to 5 consecutive points 0.1, 1.0, 10.0, 100.0, or 1000.0 ppm |
| Temperature Range |
32 to 100°F (0.0 to 100.0°C) |
| Temperature Resolution |
0.1 °F or C |
| Temperature Accuracy |
±0.3 °F or C |
| Temperature Calibration |
Offset 0.1°C increments up to ±5°C/±9°F |
| Memory |
Up to 100 data sets |
| Dimensions |
6 1/8" x 6 7/8" x 2 3/4" (15.5 x 17.5 x 6.9 cm) |
|
