Oakton ION 510 pH, mV, Concentration, Temperature Benchtop Meter

Our Price: $667.80

Item Number: ION 510

Manufacturer: Oakton

Part Number: WD-35619

Product Options

* denotes required field

Oakton WD-35619 Model Selection*

Ion 510 benchtop meter only, 110/220 VAC

Ion 510 benchtop meter with "All in One" combination single junction pH electrode/temperature sensor, 110/220 VAC (+ $37.20)

Ion 510 benchtop meter with double-junction pH electrode and temperature probe, 110/220 VAC (+ $107.20)

Quantity:

Email this page to a friend

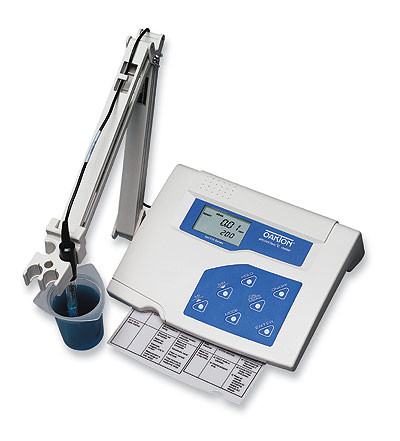

Oakton ION 510 Benchtop Meter with built-in electrode stand

Oakton ION 510 pH, mV, Concentration, Temperature Benchtop Meter

The ION 510 meter features preprogrammed ion calibration points that let you be ready to take readings in minutes. Large LCD display shows pH or mV and °C readings, or ppm and mV electrode output in the ion mode. This simultaneous display of ppm and mV allows the user to verify electrode operation while taking measurements.

Features

Direct readout of ion concentration
Preprogrammed ion calibration points make meter easy to use
Dual display of pH or mV plus temperature, or ppm and electrode output in mV
Selectable pH buffer sets and three-point pH calibration with auto buffer recognition
Works with any Ion Selective Electrode with BNC connector
Manual or Automatic Temperature Compensation (ATC)
Built-in electrode stand; slide-out reference card
Store up to 50 readings into memory
Recorder output; Hold function; Selectable "Ready" function

Technical Specifications

Measures	Ion, mV, pH, °C
pH Range	0.00 to 14.00 pH
pH Resolution	0.01 pH
pH Accuracy	±0.01 pH
pH Calibration	Up to 3 points; select USA (4.01, 7.00, 10.01) or NIST (4.01, 6.86, 9.18) buffer sets
mV Range	-1999 to +1999 mV
mV Resolution	0.1 mV from ±199.9 mV; 1 mV beyond ±199.9 mV
mV Accuracy	±0.2 mV from ±199.9 mV; ±2 mV beyond ±199.9 mV
mV Calibration	offset up to ±150 mV
Ion Range	0.01 to 1999 ppm
Ion Resolution	0.01 ppm from 0.01 to 0.99 ppm 0.1 ppm from 1.0 to 199.9 ppm 1 ppm from 200 to 1999 ppm
Ion Accuracy	±0.5% of reading
Ion Calibration	2 or 3 points (0.1, 1, 10, 100 ppm)
Temperature Range	0.0 to 100.0°C
Temperature Resolution	0.1°C
Temperature Accuracy	±0.3°C
Temperature Calibration	offset 0.1°C increments up to ±5°C
Memory	up to 50 sets
Dimensions	9" x 7" x 2.4" (23 x 18 x 6 cm)
Shipping weight	1.25 lb (0.6 kg)

Oakton ION 510 Data Sheet
