Oakton Waterproof CON 450 Conductivity Meter
|
Item Number: CON 450
Manufacturer: Oakton
Part Number: WD-35608-32
Product Options
* denotes required field
Kit Option*
You must select an option for 'Kit Option'.
* Whole number only
|

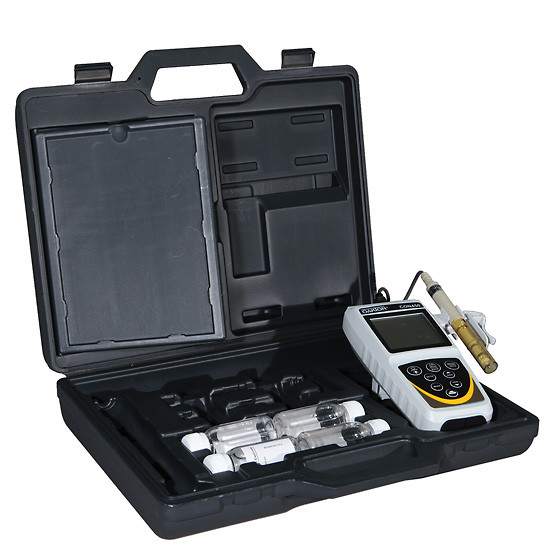

Oakton Waterproof CON 450 Conductivity Meter Oakton Waterproof CON 450 Conductivity Meter Kit |
|

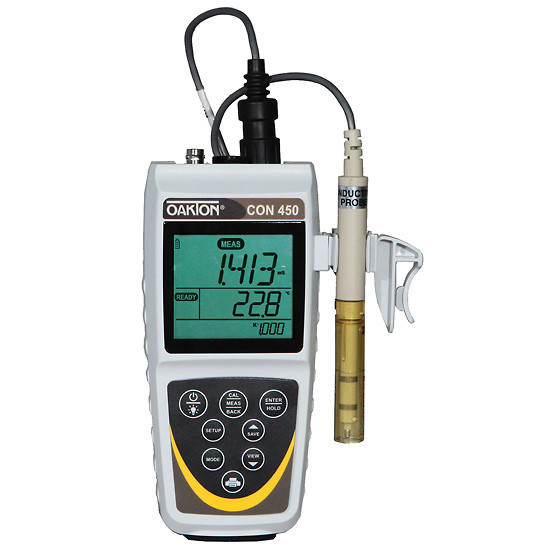

Oakton Waterproof CON 450 Conductivity Meter
The CON 450 meter presents an autocal feature which allows one calibration point per measurement range. Select a two-cell probe with a 0.1, 1.0, or 10 cell constant and automatic temperature compensation (ATC). This ensures measurement accuracy even when temperatures vary. The meter offers a ready (stability) indicator, smart averaging, and user-selectable C/F units. Its functions include, a hold function, calibration alarm, battery life indicator and electrode status. Data logging with manual or times collection of up to 500 data sets with a real-time clock time/date stamp can be achieved. Optional data cables for USB and RS-232 connectivity can be ordered.
Main measurement can be viewed simultaneously with temperature as a result of the backlit LCD. Lastly, the IP67-rated waterproof housing makes it ideal for the manufacturing floor, field testing, and the laboratory
Features
- Intuitive,user-friendly iconselectrode status displays cell constant
- Grip-Clip holder quickly and easily secures probe to beaker/container
- USB and RS-232 output for up to 500 data sets
- 500 hours battery life or optional universal power adapter
- Built-in stand with wall-mount option allows for easy benchtop measurement and storage
Technical Specifications
| Measures |
Conductivity, TDS, Salinity, °C/F |
| ConductivityRange |
0.00 to 200 mS |
| ConductivityResolution |
0.01 µS, 0.1 mS |
| ConductivityAccuracy |
±1% full scale |
| ConductivityCalibration |
One point per range |
| TDSRange |
0 to 200 ppt |
| TDSResolution |
0.01 ppm to 0.1 ppt |
| TDSAccuracy |
+/-1% full range |
| TDSCalibration |
One point per range |
| TemperatureRange |
-10.0 to 110.0°C |
| TemperatureResolution |
0.1°C |
| TemperatureAccuracy |
±0.5°C |
| TemperatureCalibration |
Offset 0.1°C increments |
| ATC |
Automatic or manual |
| Memory |
Up to 500 data sets with temperature and calibration |
| Power |
2 AA batteries, or optional AC adapter |
| Real Time Clock |
Yes |
| RS-232 |
Yes and USB |
| Cell constant |
Selectable at K = 1.0, 0.1 or 10 |
| Temperature coefficient |
Adjustable 0.00 to 10.00% per °C |
| Optional AC Power |
Yes |
| Built-in Stand |
Yes |
| Dual Display |
Yes |
| Waterproof/Dustproof (IP67) |
Yes |
| Dimensions |
7 7/8" x 3 1/8" x 2 1/4" (20 x 8.3 x 5.7 cm) |
| Shipping weight |
1.3 lb (0.6 kg) |
|
