Oakton 510 pH, mV, Conductivity, TDS, Temperature Benchtop Meter
|
Item Number: pH/CON 510
Manufacturer: Oakton
Part Number: WD-35610
Product Options
* denotes required field
Oakton WD-35610 Model Selection*
* Whole number only
|
|
Oakton 510 pH, mV, Conductivity, TDS, Temperature Benchtop Meter

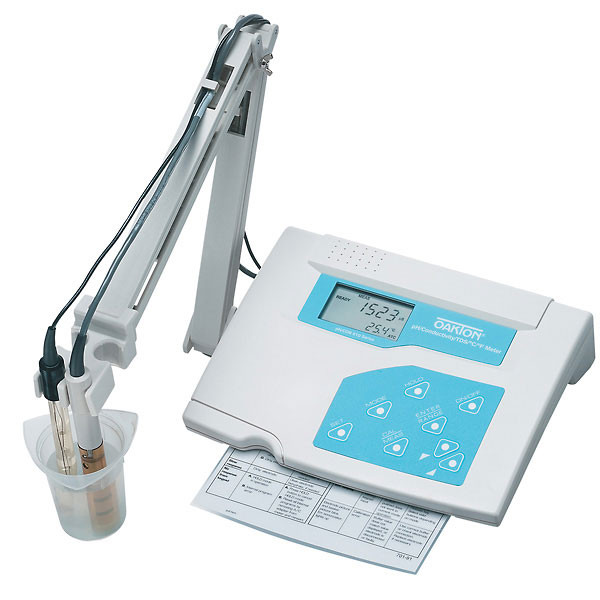

The pH/CON 510 is an economical way to measure pH, mV, conductivity, TDS and temperature in the lab. Compact design features a large LCD display that shows pH, mV, conductivity or TDS reading along with temperature (°C or °F). Includes pH electrode, conductivity probe, electrode holder arm, instruction card, and power adapter.
Features
- Toggle easily between pH, mV, conductivity, and TDS measurements
- Dual display of pH, mV, conductivity, or TDS plus temperature (°F or °C)
- Five-point calibration for pH and either conductivity or TDS
- Adjustable temperature coefficient and conductivity-to-TDS conversion factor
- Autoranging feature for conductivity and TDS readings
- Memory recalls previous calibration points, pH electrode slope and offset, and conductivity/TDS effective cell constants per range
- Detachable electrode holder arm holds probes firmly in place
- pH auto-buffer recognition, Hold function
Technical Specifications
| Measures |
pH, mV, Conductivity, TDS, °C, °F |
| pH Range |
-2.00 to 16.00 pH |
| pH Resolution |
0.01 pH |
| pH Accuracy |
±0.01 pH |
| pH Calibration |
up to 5 points: select USA (1.68, 4.01, 7.00, 10.00, 12.45) and NIST (1.68, 4.01, 6.86, 9.18, 12.45) |
| mV Range |
- 600 to +600 mV |
| mV Resolution |
0.1 mV from ±199.9 mV; 1 mV beyond |
| mV Accuracy |
±0.2 mV from ±199.9 mV; ±2 mV beyond |
| Conductivity Range |
0 to 19.99 µS
0 to 199.9 µS
0 to 1999 µS
0 to 19.99 mS
0 to 199.9 mS |
| Conductivity Resolution |
0.01 µS, 0.1µS, 1 µS, 0.01 mS, 0.1 mS |
| Conductivity Accuracy |
±1% full scale |
| Conductivity Calibration |
one point per range (up to 5) |
| TDS Range |
0 to 9.99 ppm
10.0 to 99.9 ppm
100 to 999 ppm
1.00 to 9.99 ppt
10.0 to 199.9 ppt |
| TDS Resolution |
0.01 ppm, 0.1 ppm, 1 ppm, 0.01 ppt, 0.1 ppt |
| TDS Accuracy |
±1% full scale |
| TDS Calibration |
one point per range (up to 5) |
| Temperature Range |
0 to 100%deg;C / 32 to 212°F |
| Temperature Resolution |
0.1°C or °F |
| Temperature Accuracy |
±0.5°C or °F |
| Temperature Calibration |
offset up to ±5°C or °F |
Dimensions
|
9" x 7" x 2.4" (23 x 18 x 6 cm) |
| Shipping weight |
1.25 lb (0.6 kg) |
|
