NK Technologies ASM Series Load Monitoring Self-Calibrating AC Current Operated Switches
The 'ASM' Series Load Monitoring Switches from NK Technologies are designed for overload, underload or operating window applications. Upon sensing an average operating current, the ASM selflearns and establishes a limit-alarm trip point based on +/- 15% of the average expected current draw. The ASM offers a choice of solid state outputs and is available in solid or split-core enclosure styles.
Applications
• Conveyors (-OL option)
Detects jams and overloads.
Interlocks multiple conveyor sections.
• Electronic Proof of Flow (-UL option)
More reliable than electro-mechanical pressure or flow switches. No need for pipe or duct penetrations.
• Pump Protection (-OU option)
Provides overload (jams) and underload (suction loss) indication.
Features:
Self-powered & Self Calibrating
Speeds start-up, cuts installation costs.
-
Choose the Operating Style that Matches your Application
Status monitoring, overload and operating window options.
-
Universal Output
AC or DC compatibility with any automation system.
-
UL, CUL and CE Approval
Accepted worldwide.

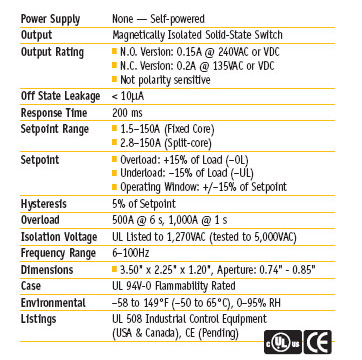

Specifications:

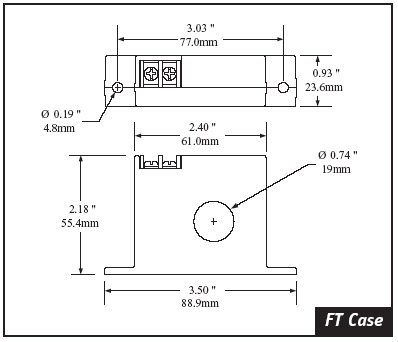

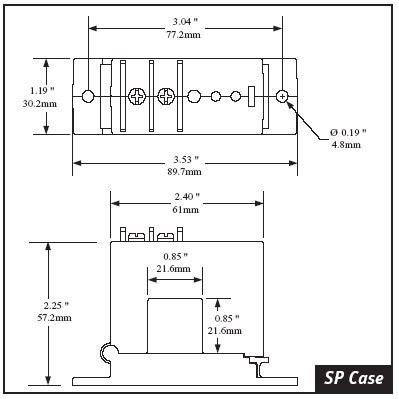

Case Styles & Dimensions:
|
