NK Technologies DT Series DC Current Transducers (Bidirectional Output, Split-Core)
'DT' Current Transducers from NK Technologies combine a Hall effect sensor and signal conditioner into a single package for use in DC current applications up to 400A. The DT Series has jumper selectable current input ranges and industry standard 0-20mA, 4-20mA, 0-3VDC, 0-5VDC or 0-10VDC outputs. Available in
solid or split-core packages.
Applications
- Battery Banks
- Monitors load current.
- Monitors charging current.
- Verifies operation.
- Transportation
Measures traction power or auxiliary loads.
- Electric Heating Elements
Faster response than temperature sensors.
Features
-
Three Jumper Selectable Ranges
- Reduces inventory.
- Eliminates zero and span pots.
-
Isolation
- Output is magnetically isolated from the input for safety.
- Eliminates insertion loss (voltage drop).
-
Internal Power Regulation
- Works well, even with unregulated power.
- Cuts installation costs.
-

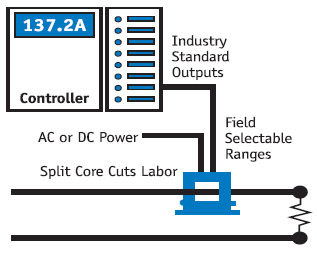

Easy Installation
Split-core design with built-in mounting brackets makes installation a snap.

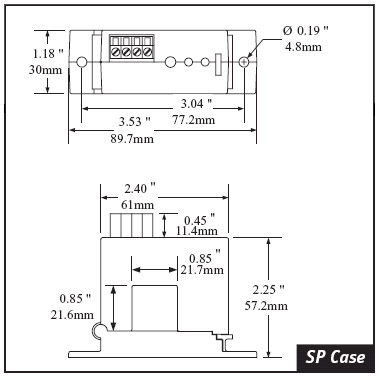

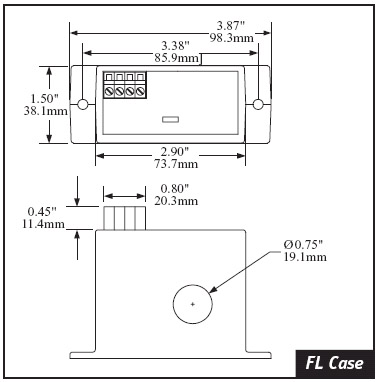

Case Styles & Dimensions
|
NK Technologies DT Series DC Current Transducers, Jumper Selectable Input Ranges, 0 - 5 VDC, 0 - 10 VDC or 4 - 20 mADC Output. (Unipolar Output, Solid-Core)
|
NK Technologies DT Series DC Current Transducers, Jumper Selectable Input Ranges, 0 - 5 VDC, 0 - 10 VDC or 4 - 20 mADC Output. (Bipolar Output, Solid-Core)
|
NK Technologies DT Series DC Current Transducers, Jumper Selectable Input Ranges, 0 - 5 VDC, 0 - 10 VDC or 4 - 20 mADC Output. (Unipolar Output, Split-Core)
|
NK Technologies DT Series DC Current Transducers, Jumper Selectable Input Ranges, 0 - 5 VDC, 0 - 10 VDC or 4 - 20 mADC Output. (Bipolar Output, Split-Core)
|
