NK Technologies ATS Series AC Current Transducer/Switch with Digital Setpoint Display

Our Price: $200.00

Item Number: ATS

Manufacturer: NK Technologies

Part Number: ATS

Product Options

* denotes required field

Range Selection*

0–50 Amp AC, 1–50 switch adjustment

0–200 Amp AC, 4–200 switch adjustment

Analog Output Signal Type*

4 to 20mA (powered by sensor)

0–5 VDC

0–10 VDC

Output Contact Selection*

Normally Open, closes on current rise, AC control only; 24VAC or DC, Solid-core Case

Normally Closed, opens on current rise, AC control only; 24VAC or DC, Solid-core Case

Quantity:

Email this page to a friend

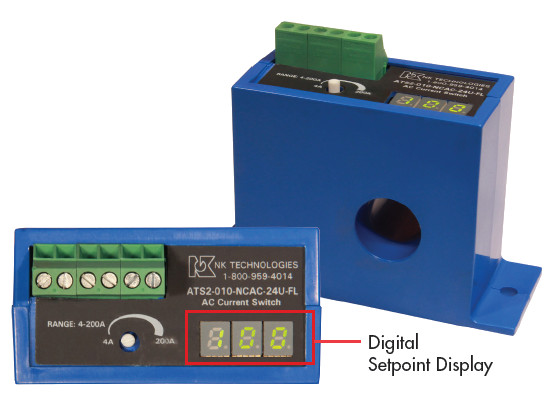

NK Technologies ATS Series AC Current Transducer/Switch with Digital Setpoint Display

ATS Series AC Current Sensors combine a current operated switch and transducer into a single package. The FL model features a digital display that gives visual indication of the setpoint for greater accuracy. The sensor provides a solid- state contact which will change state when the current exceeds an adjustable level or falls below the normal running current. This means reduced installation time, plus the option to have local control of a starter coil while at the same time sending the analog signal back to a controller housed in a separate cabinet.

Features

Solid -State Output

N.O. or N.C. solid-state switch for control circuits up to 240VAC
Compatible with most automation systems

Externally powered

Allows for higher accuracy

Easily Adjustable and Precise Setpoint

Speeds startup

Analog Output

Measure the current used at all times

LED Display

Provides quick visual indication of where the contact changes
Easiest and most accurate setpoint adjustment available

Built-in Mounting Feet

Simple, two-screw panel mount or attach with optional DIN rail brackets

Designed for UL, CUL and CE Approval

Accepted worldwide

Applications

Electronic Proof of Operation

Current operated switches eliminate the need for multiple
pipe or duct penetrations and are more reliable than
electromechanical pressure or flow switches.

Conveyors

Detects jams and overloads.
Interlocks multiple conveyor sections.

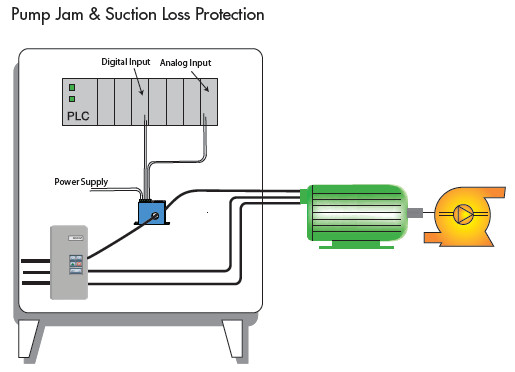

Pump Control

Provides signal to measure current and shuts down the
pump if the current rises over the setpoint.

Cooling Towers

Analog monitors time of use and contact opens
if a filter clogs.

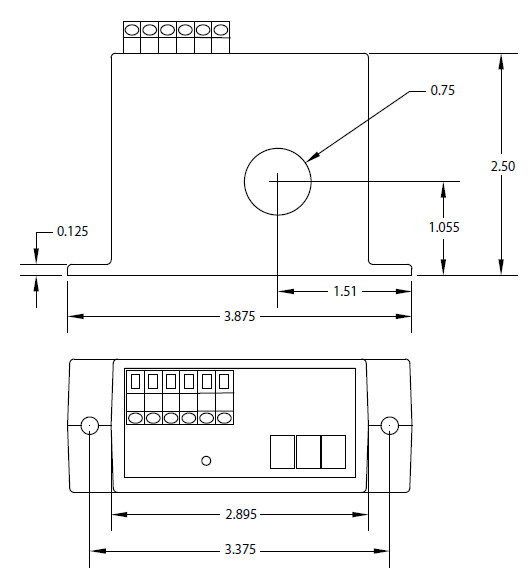

Dimensions

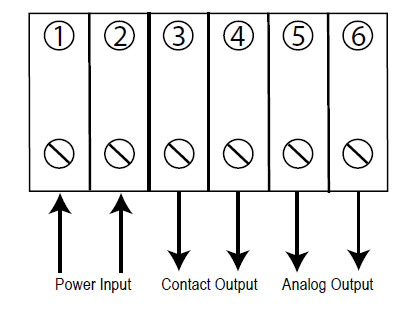

Connections

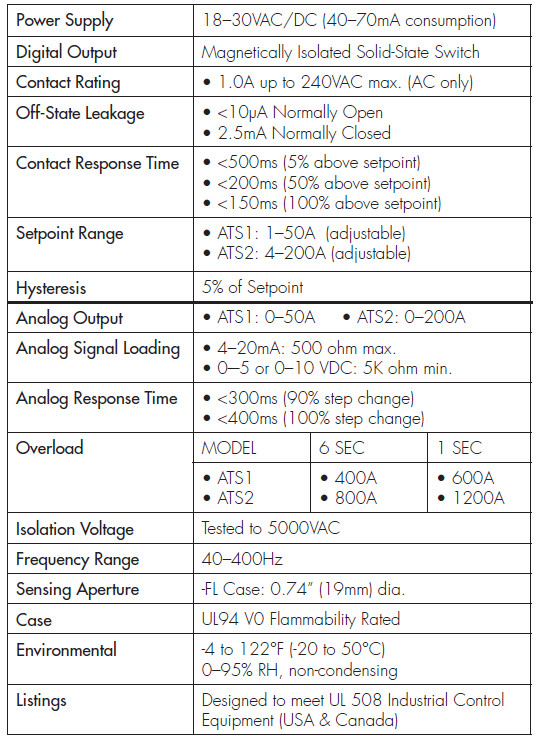

Technical Specifications

NK Technologies ATS Series Data Sheet
