NK Technologies ATH AC Current Transducer
|
Item Number: ATH
Manufacturer: NK Technologies
Part Number: ATH
Product Options
* denotes required field
Range Selection*
You must select an option for 'Range Selection'.
Output Type Options*
You must select an option for 'Output Type Options'.
Power Supply Options*
You must select an option for 'Power Supply Options'.
Case Style Options*
You must select an option for 'Case Style Options'.
* Whole number only
|
|

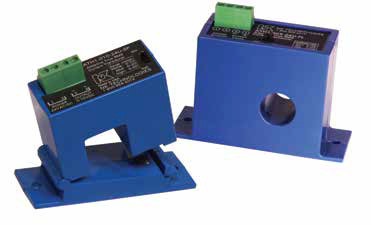

NK Technologies ATH AC Current Transducer
The ATH Series are the most recent development from NK Technologies and they provide an output signal directly proportional to the RMS amperage. The ATH frequency range is from 40 to 400 Hz and they're available in either a solid-core or a split-core case.
Features
- 4–20mA, 0–5 or 0–10 VDC
- Compatible with most automation systems
|
- Split-core models available powered with 24 VAC or DC
- Solid-core models powered with 24 VAC or DC or 120 VAC
|
- No need for zero and span adjustment potentiometers
|
- Accurate measurement of sinusoidal, or pulsed current wave shapes
|
- Simple, two-screw panel mount or attach with optional DIN rail brackets
|
|
|
Applications
Electrical Heaters
- Faster response than temperature sensors
- Simplest method to monitor pulsed wave forms

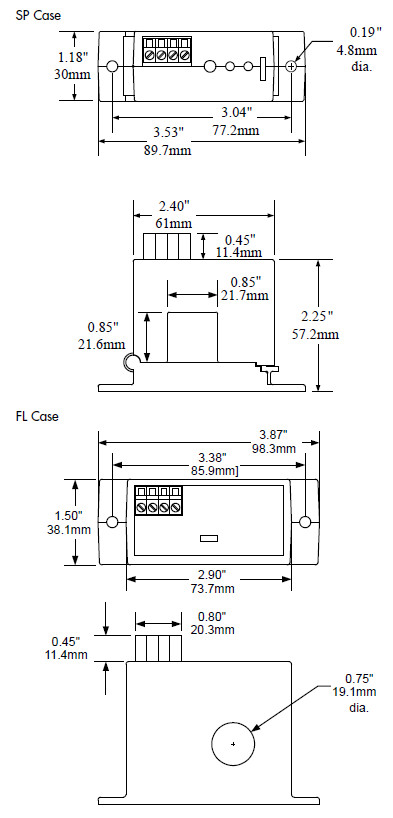

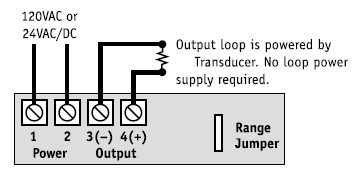

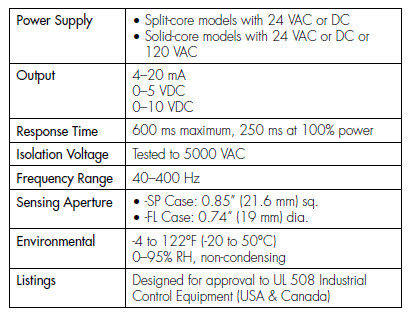

Dimensions Connections Technical Specifications
|
