NK Technologies AT Series AC Current Transducers

NK Technologies AT Series AC Current Transducers

'AT' Current Transducers from NK Technologies combine a current transformer  and signal conditioner into a single package. The AT Series has jumper selected current input ranges and industry standard 4-20mA, 0-5VDC or 0-10VDC outputs. The AT Series is designed for application on 'linear' or sinusoidal AC loads.  Available in a split-core case or two types of solid-core cases.

Applications

• Automation Systems
  Analog current reading for remote monitoring and software alarms.
• Data Loggers
  Self-powered transducer helps conserve data logger batteries.
• Panel Meters
  Simple connection displays power consumption.

Features

• Accurate
  Factory matched and calibrated single piece transducer is more accurate than traditional two-piece field installed solutions.
• Average Responding
  “Average Responding” algorithm gives a RMS output on pure sine waves.  Perfect for constant speed (linear) loads.
• Jumper Selectable Ranges
  - Reduces inventory.
  - Eliminates zero and span pots.
• Isolation
  - Output is magnetically isolated from the input for safety.
  - Eliminates insertion loss (voltage drop).
• UL, CUL and CE Approval
  Accepted worldwide.

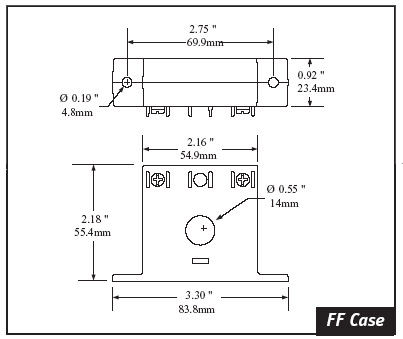

Case Styles & Dimensions
