NK Technologies ASXP Series AC Current Operated Switches with Time Delay
The 'ASXP' from NK Technologies is a powered version of our popular current switch with integral time delay series. A fixed two-second delay upon trip minimizes nuisance alarms during start-up and operation in motor or heater status applications. For use with 24VAC/DC or 120VAC supplies, this high performance product offers OEM-caliber accuracy, precision tolerances, low hysteresis and low (non-sinusoidal) frequency operation. Available with status LED and solid-core enclosure as standard.
Applications
- Motor Protection

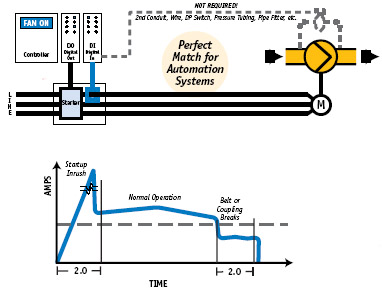

Serves as an electronic proof-of-operation; detects current draw changes in motors when they encounter problems such as pumps running dry or pending bearing failure.
Non-intrusive, less expensive to install than differential pressure flow sensors or thermal switches. Much quicker response time than Class 10 overload relays.
- High Inrush or Temporary Overload Current
Start-up/delay timer provides 2 second delay to avoid nuisance tripping from high inrush or short overload conditions.
Features
- Fixed Start-up/Delay Timer
Factory calibrated trip timer set to 2 seconds to eliminate nuisance alarms due to start-up inrush or temporary overcurrent conditions.
- Choice of N.O./N.C. Electro-mechanical Relay Output
Contact rating of 10A@240VAC provides adequate switching capacity for use in most motor control systems.
- Improved Ease of Installation and Use
Eliminates need for separate time delay relay Choice of 24VAC/DC or 120VAC supply models LED provides indication of trip point contact status Setpoint adjustable from 1-50A
- Industrial Grade Performance
0.5% accuracy, precise time delay setpoint, constant hysteresis, linear response and low frequency capability
- Agency Approved
UL, CE approvals pending

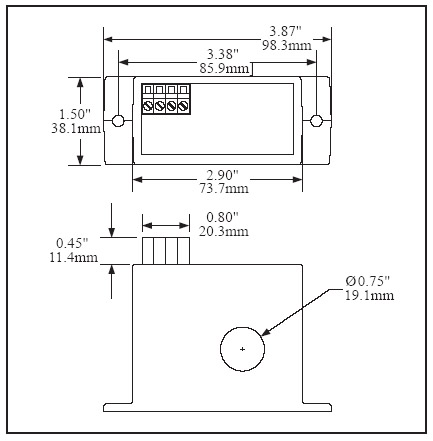

Case Styles & Dimensions
|
