NK Technologies ASD Series Current Switch with Easy Set-point

Our Price: $150.00

Item Number: ASD

Manufacturer: NK Technologies

Part Number: ASD

Product Options

* denotes required field

Range Selection*

Output Contact Selection*

Calibration Options

Calibration Not Included

Standard Calibration Certificate (+ $80.00)

ISO 17025 Accredited Calibration Certificate (+ $110.00)

Quantity:

Email this page to a friend

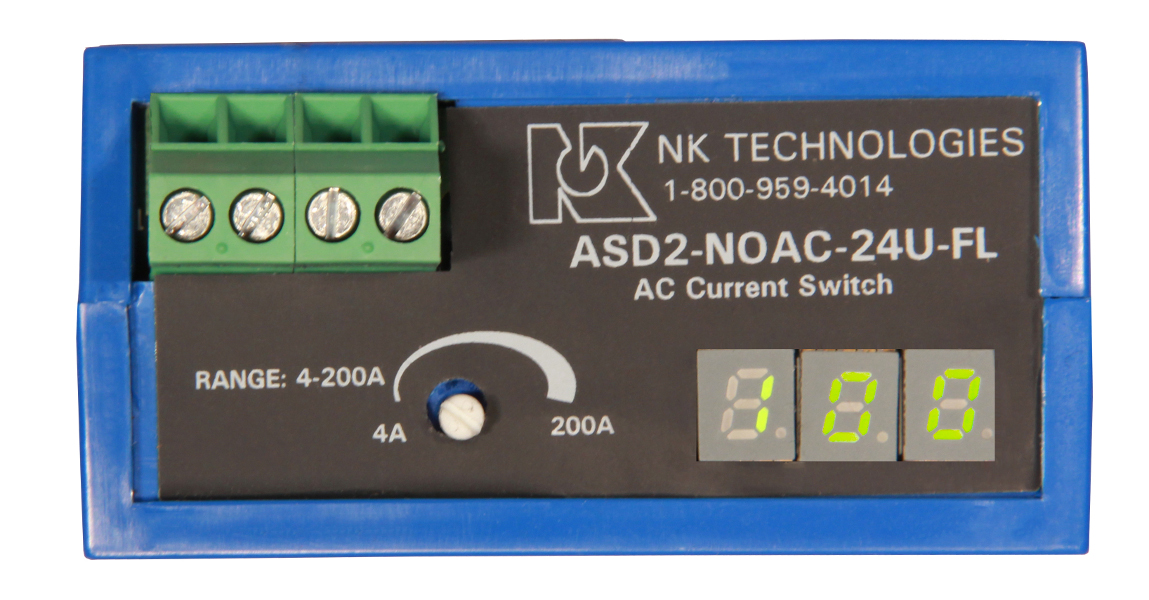

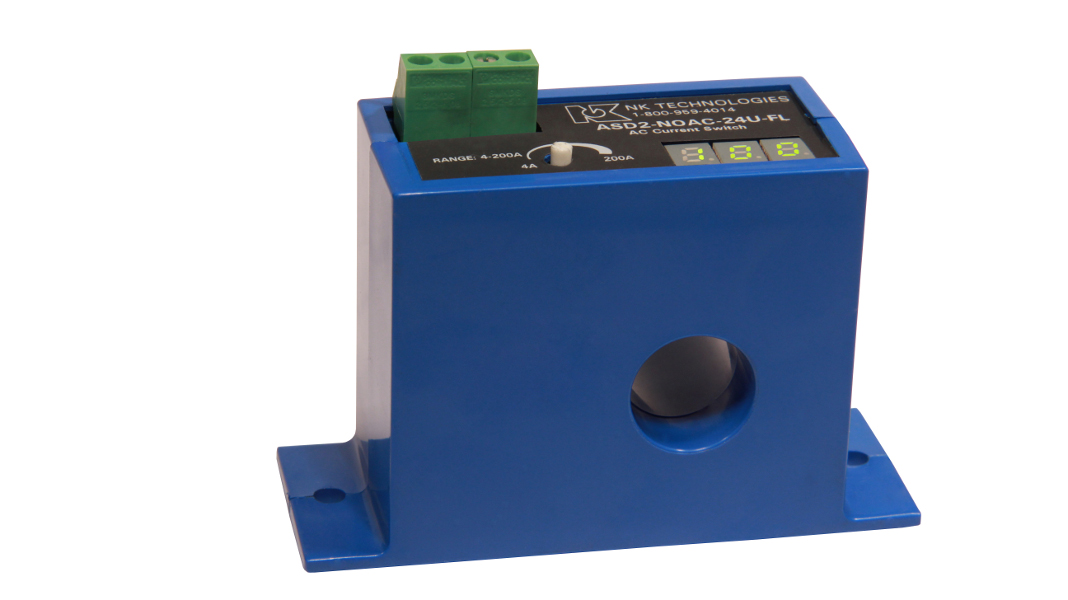

NK Technologies ASD Series Current Switch with Easy Set-point

NK Technologies ASD Series Current Switch with Easy Set-point

ASD series sensors provide a limit alarm contact with the easiest adjustment method ever designed. The single turn potentiometer, allows the trip point to be set before the sensor is installed, or before the monitored circuit is energized. The LED display provides a quick visual indication of where the contact changes.

Features

Solid-State Output

N.O. or N.C. solid-state switch for control circuits up to 240 VAC
Compatible with most automation systems

External Powered

Allows for higher accuracy

Easily Adjustable and Precise Setpoint

Speeds startup
Improves the safety by allowing the trip point adjustment with no power through the sensing window

LED Display

Provides quick visual indication of where the contact changes
Easiest and most accurate setpoint adjustment available

Built-in Mounting Feet

Simple, two-screw panel mount or attach with optional DIN rail brackets

Designed to Meet UL, CUL and CE Approval

Accepted worldwide

Applications

Electronic Proof of Operation

Current operated switches eliminate the need for multiple
pipe or duct penetrations and are more reliable than
electromechanical pressure or flow switches.

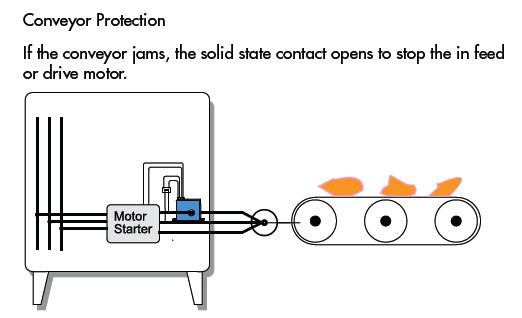

Conveyors

Detects jams and overloads.
Interlocks multiple conveyor sections.

Pump Control

Output contact is adjusted so it is closed during normal
operation, opening if the pump runs dry or there is a loss
of head pressure for any reason.

Cooling Towers

Monitor for over-current conditions caused by open duct
access doors or under-current from a broken drive belt or
coupling.

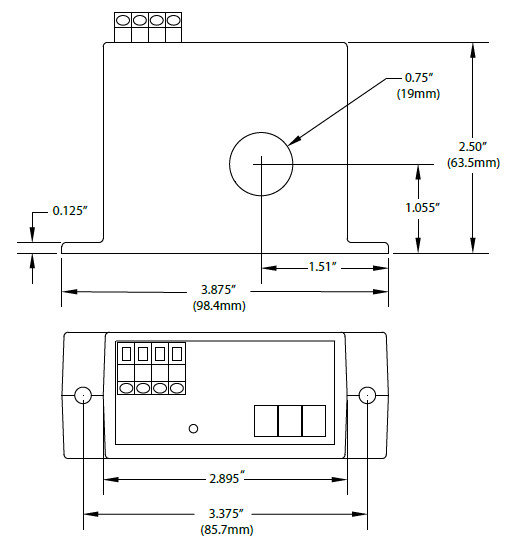

Dimensions

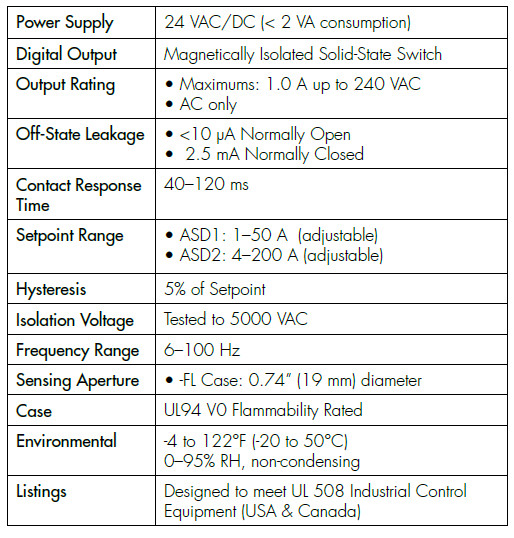

Technical Specifications

NK Technologies ASD Series Data Sheet
