NK Technologies ASC Current Operated Switch

Our Price: $135.00

Item Number: ASC

Manufacturer: NK Technologies

Part Number: ASC

Product Options

* denotes required field

Output Rating Options*

Primary Circuit Frequency Options*

Case Style Options*

Pick Your Factory Set Trip Point (in Amps.)

(002-150 Solid-core) or (003-150 Split-core)

Quantity:

Email this page to a friend

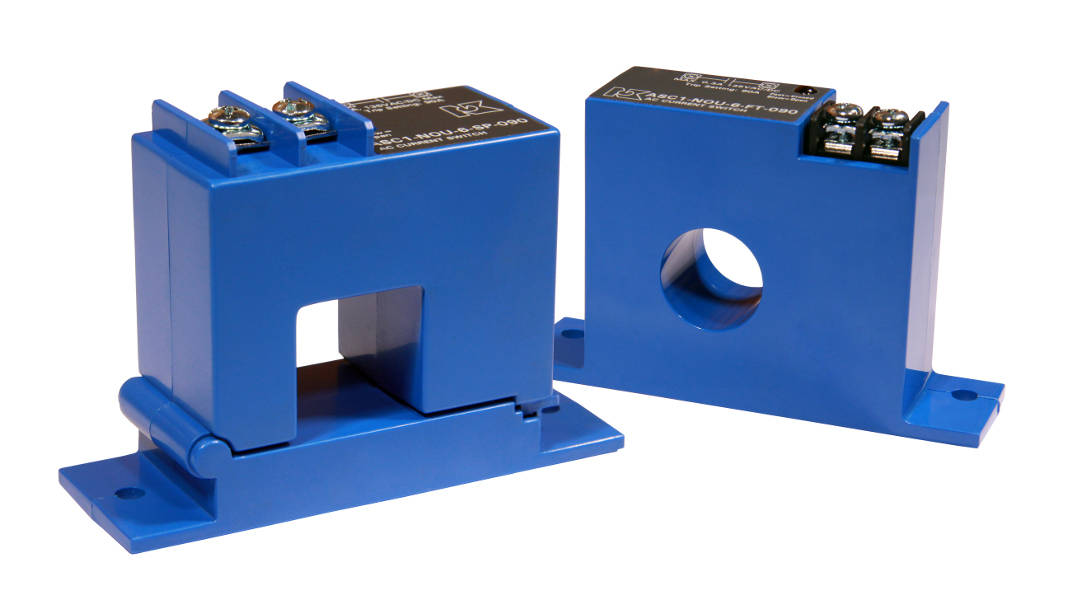

NK Technologies ASC Current Operated Switch

ASC Series Current Operated Switches are precision calibrated at the factory per customers specifications and guaranteed within 1% accuracy. Because the switch is factory calibrated eliminating the need to turn the potentiometer to the correct position in the field, installation time is substantially reduced resulting in a significant cost savings. The ASC combines a current transformer, signal conditioner and limit alarm into a single package for use in status monitoring or proof of operation applications and is perfect for OEM applications where the need for a limit alarm is required. Available in a solid-core enclosure or in a split-core enclosure to maximize ease of installation.

Features

Universal Output

N.O. or N.C. solid-state switch for control circuits up to 135 VAC/DC
Compatible with most automation systems

Self-powered

Cuts installation and operating costs

Precision-Calibrated Factory Set Trip Point

Speeds startup
Improves safety

Solid- or Split-core Case

Versions tailored for each installation

LED Indication

Provides quick visual indication of contact status

Built-in Mounting Feet

Simple, two-screw panel mount or attach with optional DIN rail brackets

Designed to Meet UL, CUL and CE Approval

Accepted worldwide

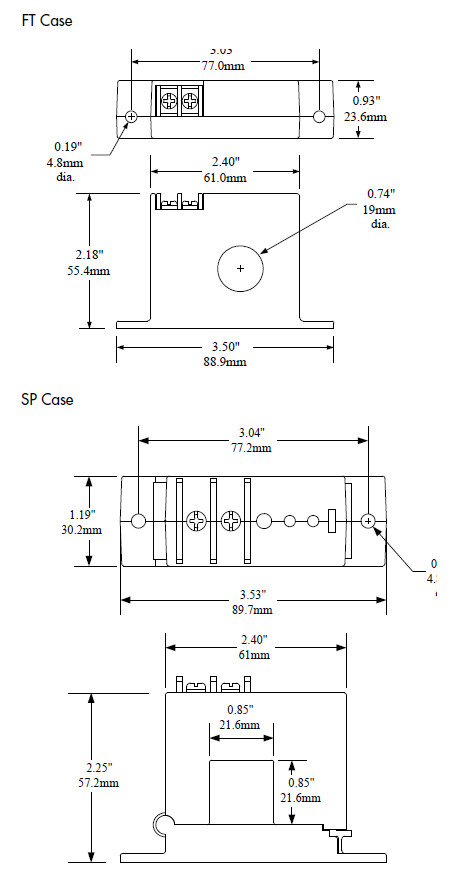

Dimensions

Technical Specifications

Power Supply	None — Self-powered
Output	Magnetically Isolated Solid-State Switch
Output Rating	• N.O. Version: 0.3 A @ 135 VAC or VDC • N.C. Version: 0.3 A @ 135 VAC or VDC • Not polarity sensitive
Off-State Leakage	<10 μA
Accuracy	1%
Response Time	120 ms
Setpoint Range	• Solid-core: 2–150 A (factory set) • Split-core: 3–150 A (factory set)
Hysteresis	5% of Setpoint
Overload	MODEL 6 SEC 1 SEC • All • 400 A • 1000 A
Isolation Voltage	Tested to 5000 VAC
Sensing Aperture	• -FT Case: 0.74” (19 mm) dia. • -SP Case: 0.85” (21.6 mm) sq.
Case	UL94 V0 Flammability Rated
Environmental	-4 to 122°F (-20 to 50°C) 0–95% RH, non-condensing
Listings	Designed to meet UL 508 Industrial Control Equipment (USA & Canada)

NK Technologies ASC Series Data Sheet
