NK Technologies AS0 Series AC Ultra Low Current Operated Switches
'AS0' Low-Current Sensors from NK Technologies are specialized current operated switches which combine an ultra-sensitive current transformer and signal conditioning electronics into a single package for sensing AC current from 3-350mA. Useful for signal or lamp status monitoring, detecting minute fault currents or fan proving, the ASO features solid-state outputs and jumperselectable ranges, which make it a versatile choice for low-current status indicating applications.
Applications
- Fan Monitoring
Fan status in heating and drying applications.
Identify lamp outages or other malfunctions through changes in current consumption.
- Fractional HP Motors
Ideal for monitoring small motors used in critical applications; for example, fan-proving on a crucial cooling fan.
- Fault Current Sensing
Detects extremely low levels of current resulting from fault conditions.
Features
- Wide Range of Output Options
Dependable, solid state switch N.O. or N.C. contacts rated at 240VAC or 30VDC.
Compatible with most standard automation controllers.
- Isolated Inputs and Outputs
Inductive sensing eliminates insertion loads on monitored circuit, effectively isolating it from unit.
Isolated Outputs simplify wiring and enhance safety.
- Adjustable Setpoints
Setpoints are field adjustable from 3mA to 350mA, speeding installation and allowing for tailored applications.
- UL, CUL and CE Approval
Accepted worldwide.

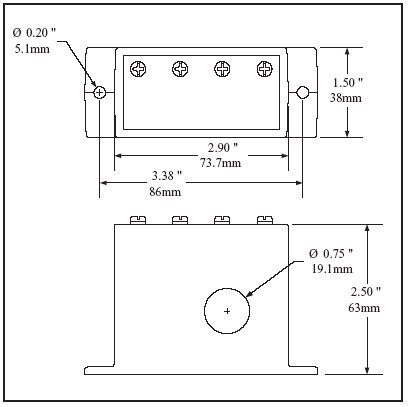

Case Styles & Dimensions
|
