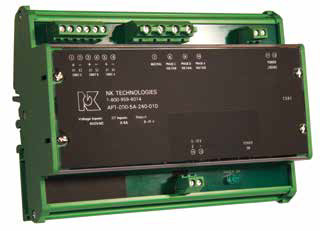

NK Technologies APT Series Power Transducer

APT Power Transducers measure three phases of current and voltage, and produces an industry standard analog signal proportional to the watts used. The monitor uses current transformers to measure the amperes, and the line voltage connects directly to the transducer, up to 600 VAC. The APT power transducer can be configured to accept five amp secondary current transformers or the safer ProteCT low voltage output sensors. Either type of current sensing will produce an accurate output signal to help you identify areas of excessive energy consumption and allow intervention to reduce demand.

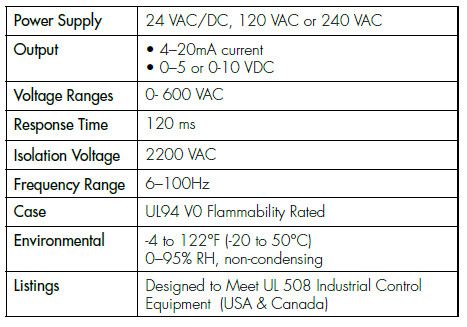

• Choose 4–20 mA, 0–5 or 0–10 VDC.
• Compatible with most automation systems.

• Improves reliability when used in conditions where power interruptions and voltage sags are common.

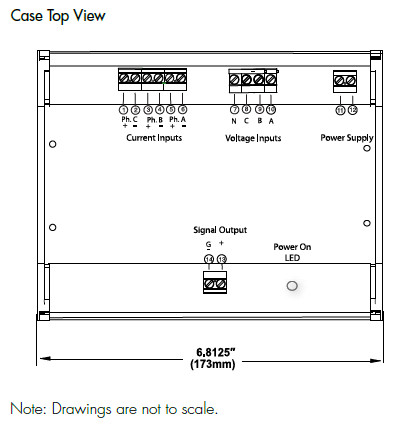

• Clearly labeled terminals provide quick installation.

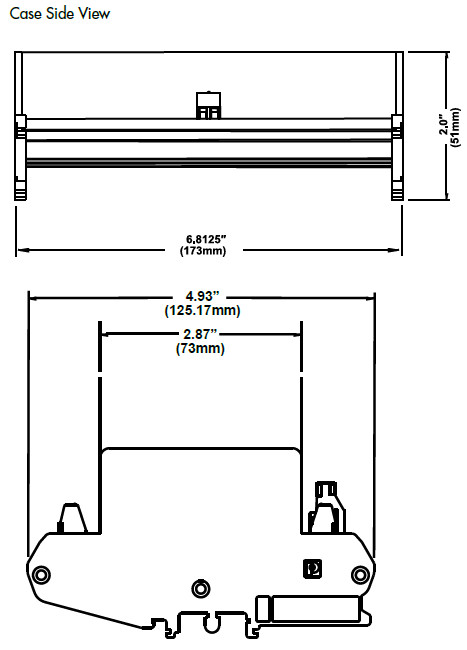

• low profile reduces cabinet depth requirements.

• Safe and secure connectors.

• Accepted worldwide.

• Measure the power usage of a single piece of equipment, an area of a plant or the entire facility.

• Detects jams and overloads.
• Check that the belt is loaded properly by measuring the power consumption.

• Detect dry run from clogged intact or discharge line.
• Monitor impeller cavitation and bearing wear.

NK Technologies APT Data Sheet
