NK Technologies APN-R Series Power Monitoring Measurement Transducer

Our Price: $900.00

Item Number: APN-600

Manufacturer: NK Technologies

Part Number: APN-600

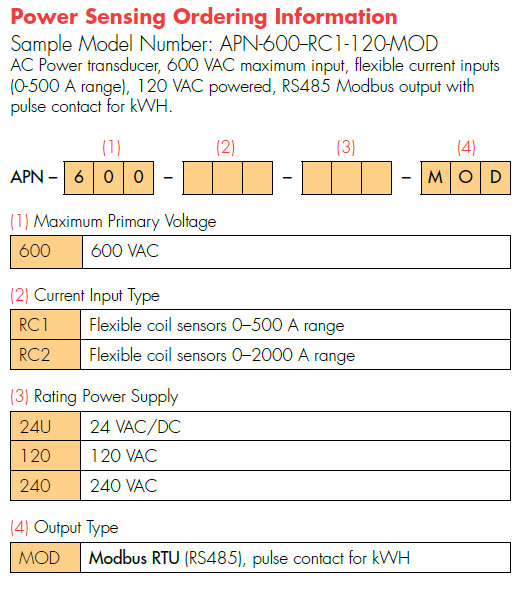

Product Options

* denotes required field

Current Input Type Options*

Rating Power Supply Options*

Quantity:

Email this page to a friend

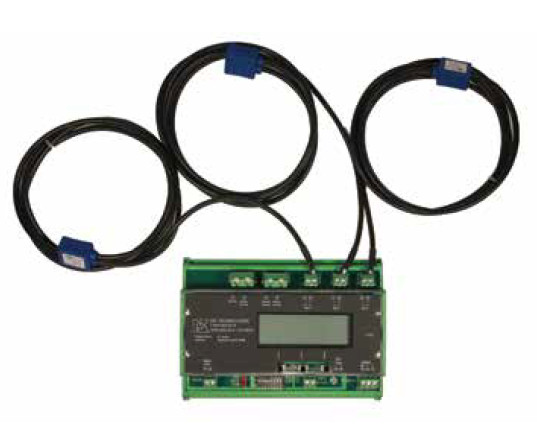

NK Technologies APN-R Series Power Monitoring Measurement Transducer

The APN -R Series Power Monitor measures three phases of current and voltage and computes fourteen values necessary to track power usage. The monitor uses flexible current sensors to measure the amperes, and the line voltage connects directly to the transducer, up to 600 VAC. The result is 14 data points in the RS485 Modbus RTU format. There is also a pulse contact which opens and closes as watt hours are accumulated. The APN-R is factory configured with specifically matched flexible coils. The ease of installation over multiple conductors or bus assemblies will speed installation and produce an accurate set of data to help you identify areas of excessive energy consumption and allow intervention to reduce demand.

Features

Modbus RTU Output

RS485 communication protocol reduces the cost involved with proprietary data logging software
Compatible with most automation systems

Externally Powered

Improves reliability when used in conditions where power interruptions and voltage sags are common

Compact DIN Mounted Housing

Clearly labeled terminals provide quick installation
Low profile reduces cabinet depth requirements

LED Displays Network Communication

Provides quick visual indication that network is operational

Finger Safe Terminals

Safe and secure connectors

Designed to Meet UL, CUL and CE Approval

Accepted worldwide

Applications

Plant Energy Management
• Measure the power usage of a single piece of
equipment, an area of a plant, or the entire facility.
Conveyors
• Detect jams and overloads.
• Check that the belt is loaded properly by measuring the
power consumption.

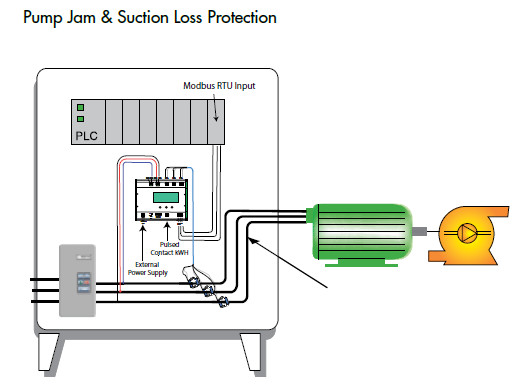

Pump Monitoring
• Detect dry run from clogged, intake, or discharge line.
• Monitor impeller cavitation and bearing wear.

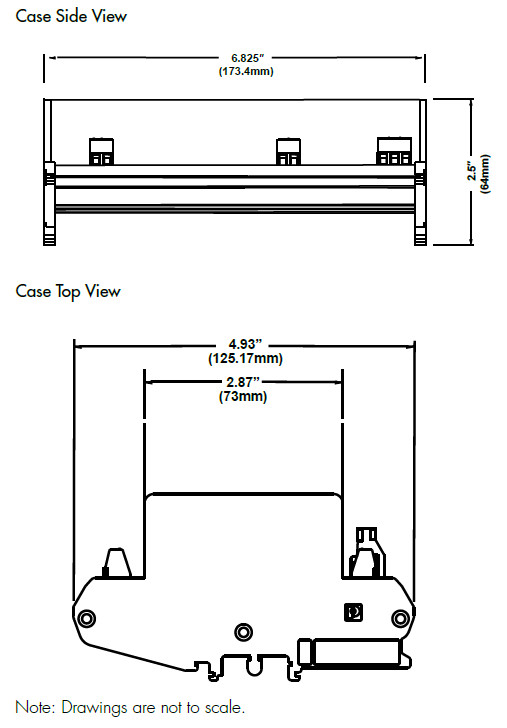

Dimensions

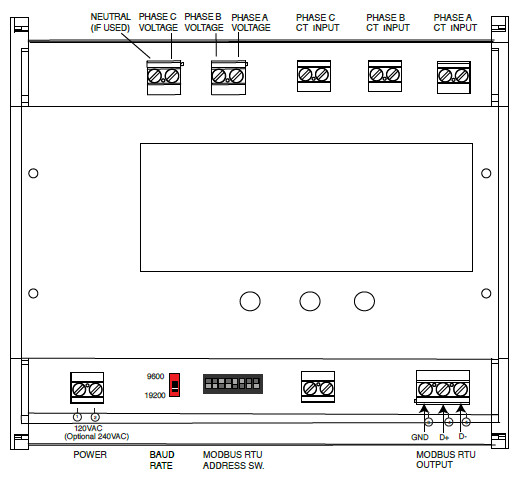

Power Sensing Connections

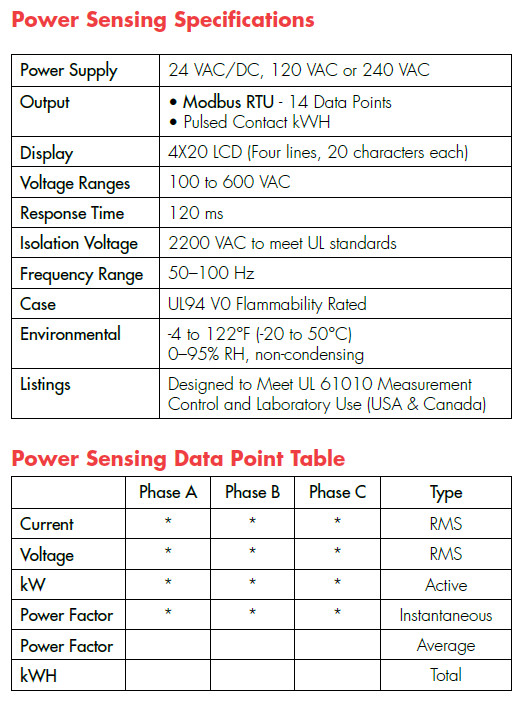

Technical Specifications

NK Technologies APN-600 Data Sheet
