Newport Heavy Duty Armored Bolt-On Washer Thermocouple Assembly
|
Item Number: WT
Manufacturer: Newport Electronics
Part Number: WT-HD
Product Options
* denotes required field
Thermocouple Type Selection*
You must select an option for 'Thermocouple Type Selection'.
Sensor Termination Option*
You must select an option for 'Sensor Termination Option'.
NIST Calibration - Thermocouple Sensor*
You must select an option for 'NIST Calibration - Thermocouple Sensor'.
* Whole number only
|
|

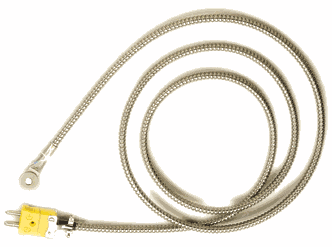

Newport Bolt-On Armored Washer Thermocouple Assemblies
Rugged thermocouple, for surface mount applications, has a washer mounting surface and an overall dimension of 0.680" O.D., with a 0.260" mounting hole of 304 SS material. Attached to the mounting surface: 6' of 304 SS flexible armor cable with stripped wire ends. Armor cable has 0.275" O.D., with 0.070" washer thickness. Standard male connectors are available for cold-end termination. Rated to 480 Deg C (900 Deg F).
Features:
-
6 ft. 304 Stainless Steel Armor Cable
-
Available with Stripped Leads or Standard Male Thermocouple Connector Termination
-
0.275" Flexible Cable O.D
-
0.260" Washer I.D
Available in custom sizes and applications, Call with your specific needs.
|
