Newport TX94A Ultra-Miniature RTD Temperature Transmitter

Our Price: $109.00

Item Number: TX94A

Manufacturer: Newport Electronics

Part Number: TX94A

Product Options

* denotes required field

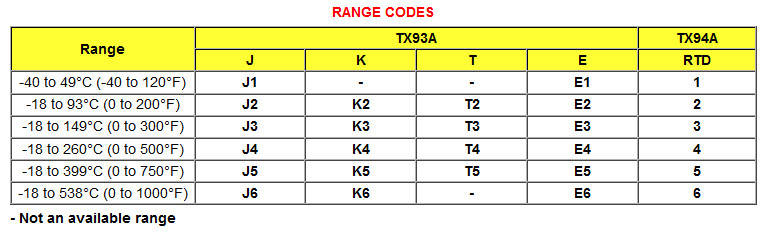

Sensor Type and Temperature Range Selection*

Option

No Option

Fully Epoxy-Potted Electronics for extreme environments (+ $16.00)

Calibration Options

Calibration Not Included

Standard Calibration Certificate (+ $85.00)

ISO 17025 Accredited Calibration Certification (+ $110.00)

Accessory Options

Regulated power supply, US plug, 90-264 Vac input, 24 Vdc output, 400 mA, stripped leads, UL (+ $65.00)

Unregulated power supply (+ $40.00)

Process loop-powered indicator (+ $160.00)

Quantity:

Email this page to a friend

Newport TX94A Ultra-Miniature RTD Temperature Transmitter

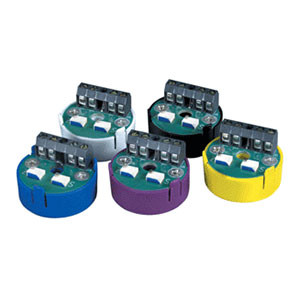

NEWPORT^® Ultra-Miniature temperature transmitters convert millivolt inputs from thermocouples or resistance from RTD’s into 4-20 mA outputs. Transmitters are available in color-coded enclosures covering the four most popular thermocouple types (J, K, T and E) as well as three-wire 100 Ohm platinum RTD’s.

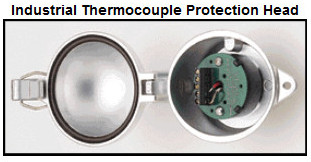

Featuring state-of-the-art integrated circuits and electronic design these ultra-compact transmitters have a diameter of only 35.6mm (1.40”) and are designed to fit in many compact thermowell protection heads such as the Newport NB2.

Newport also provides complete thermocouple and RTD assemblies. Typical stock sensors and transmitters are shown in the ordering guide. Almost any custom assembly is available for fast delivery.

TX93A and TX94A transmitters can eliminate long runs of costly field wiring in a variety of applications. A stable 4 to 20 mA output signal is provided proportional to the transmitters specific input type and calibrated temperature range. Adjustability of ±25% for zero and span is provided to facilitate some rangeability. The transmitted signal eliminates noise pickup, voltage drops, multiple cold junction errors and requires only a twisted pair of copper wire for loop connections.

All models and ranges of these Newport ultra-miniature transmitters are available with fully epoxy-potted electronics (specify -P option) providing the ultimate protection in extreme environments.

Features

±0.1% FS Accuracy
4 to 20 mA DC Output
Only 35.6 mm (1.4") Diameter
Upscale Break Protection
J, K, T, or E Thermocouple Input
100 Ω Platinum RTD Input

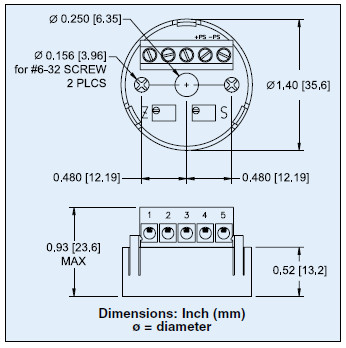

Dimensions

Technical Specifications

Output Range: 4-20 mA dc
Zero and Span Adjustment Range: ±25%
Accuracy: ±0.1% of FS
(includes effects of linearity, hysteresis and repeatability)
Frequency Response: 3dB @ 3 Hz
Operating Temperature Range:
-25 to 85°C (-13 to 185°F)
Storage Temperature Range:
-65 to 125°C (-85 to 257°F)
Supply Voltage:
8-35 Vdc, 24V recommended

Max Loop
Resistance:

Vs – 8
0.020A

Dimensions: 35.6 mm Dia. x 23.6 mm H (1.40" x 0.93")
height includes terminal strip
Weight: 15 g ( 0.53 oz.);
25 g (0.8 oz) if epoxy-potted.

Newport TX94A Data Sheet

Related Products

Newport TX93A Ultra-Miniature Thermocouple Transmitter

Our Price: $99.00

Newport TX93A thermocouple transmitter can eliminate long runs of costly field wiring in a variety of applications. A stable 4 to 20 mA output signal is provided proportional to the transmitters specific input type and calibrated temperature range.
