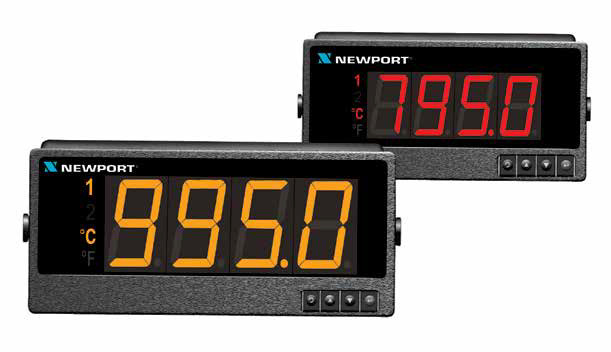

Newport iLD24-UTP Universal Temperature Process Panel Meter
|
Item Number: iLD24-UTP
Manufacturer: Newport Electronics
Part Number: iLD24-UTP
Product Options
* denotes required field
Control Output Selection*
You must select an option for 'Control Output Selection'.
Communication Options *
You must select an option for 'Communication Options '.
* Whole number only
|
|
Newport iLD24-UTP Universal Temperature Process Panel Meter
The "Universal Temperature+Process BIG Display" (iLD-UTP) is designed for Thermocouples, RTD's, and Process (DC) Voltage or Current. It handles TEN (10) thermocouple types: K, J, T, E, R, S, B, C, N, & J DIN. It works with a wide selection of RTD's, both Pt. 0.00385 and 0.00392 curves for 100 Ohm, 500 Ohm, and 1000 Ohm and it measures with 2, 3, or 4 wire connections for the highest accuracy. This model also measures process voltage: 0-100 mV, 0-1 V, 0-10 V ranges and process current, 0-20 mA (4-20 mA) with built-in excitation of 24 Vdc standard.
Control Functions
The Universal BIG Displays features a choice of two optional outputs: Form C SPDT (single pole double throw) mechanical relays (-3), Solid State Relays (-2) DC pulse (-4), and/or programmable analog output (-5) selectable as either a controlling function or as retransmission of the process value.
The Universal BIG Displays can control simple manual operation to ON-OFF and full Autotune PID control. (Selectable preset tune, adaptive tune, PID, PI, PD control modes.) The dual control outputs can be configured for a variety of independent control and alarm applications. The ramp-to-setpoint feature allows the user to define the rate of rise to setpoint, minimizing thermal shock to the load during start-up. Maximum ramp time: 99.59 (HH.MM), Soak: 00.00 to 99.59 (HH.MM), Damping: 1 to 8 in unit steps. Input types: 0 to 20 mA, 0 to 100 mV, 0 to 1 V and 0 to 10 Vdc.
For applications that do not require PID control, Universal BIG Displays controllers are available in a special model that offer simplified programming. The Universal BIG Displays "Simplified Menu" model (specify -SM option) offers simplified programming. The menu flowchart is similar to programmable digital panel meters that are used for on/off control or alarms. (Please see the Universal BIG Displays operator's manuals for programming details.)
Features
- BIG Bright 2.25" (57.2 mm) or 4.00" (101.6 mm) LED
- BIG 7-segment LEDs, 4-Digits
- Program to Change Colors: RED, AMBER, GREEN
- Temperature and Process Input
- Strain and Process Input
- Optional Relays for Alarm and Full PID Control
- Communications Via Ethernet, RS232, RS485, and MODBUS
- Embedded Web Server
Technical SpecificationsUniversal Temperature and Process Input (Model UTP)Accuracy: ±0.5°C temp; 0.03% reading processResolution: 1°/0.1°; 10 μV processTemperature Stability: RTD: 0.04°C/°C Thermocouple @ 25°C (77°F): 0.05°C/°C—cold junction compensation Process: 50 ppm/°CNMRR: 60 dB; CMRR: 120 dBA/D Conversion: Dual slopeReading Rate: 3 samples per secondDigital Filter: ProgrammableDisplay: 4-digit, 7-segment LED57.2 mm (2.25") or 101.6 mm (4.00")red, green and amber programmablecolors for process variable, set point andtemperature unitsInput Types: Thermocouple, RTD,analog voltage, analog currentThermocouple Lead Res: 100 Ω maxThermocouple Type (ITS 90):J, K, T, E, R, S, B, C, N, LRTD Input (ITS 68): 100/500/1000 ΩPt sensor, 2-, 3- or 4-wire; 0.00385 or0.00392 curveVoltage Input: 0 to 100 mV, 0 to 1 V,0 to 10 VdcInput Impedance: 10 MΩ for 100 mV1 MΩ for 1 or 10 VdcCurrent Input: 0 to 20 mA (5 Ω load)Configuration: Single-endedPolarity: UnipolarStep Response: 0.7 sec for 99.9%Decimal Selection: Temperature: None, 0.1 Process: None, 0.1, 0.01 or 0.001Setpoint Adjustment: -1999 to 9999 ctsSpan Adjustment: 0.001 to 9999 ctsOffset Adjustment: -1999 to 9999Excitation (Optional in Place of Communication): 24 Vdc @ 25 mAGeneralPower: 100 to 240 Vac ±10%, 50/60 Hz22.5 WEnvironmental Conditions: 0 to 40°C(32 to 104°F), 90% RH non-condensingWarm-Up to Rated Accuracy:60 minutesProtection: NEMA 4 (IP65) front bezelDimensionsiLD24: 289 L x 137 W x 73 mm D(11.75 x 5.375 x 2.875")
|
Newport iLD24-SP: 57 mm (2.25") 4-digit display, strain gage/process, monitor.
|
Newport iLD44-SP: 101 mm (4") 4-digit display, strain gage/process, monitor.
|
Newport iLD44-UTP: 101 mm (4") 4-digit display, universal temperature/process, monitor.
| |
