Newport iLD24-ACV Large Display AC Voltage Panel Meter
|
Item Number: iLD24-ACV
Manufacturer: Newport Electronics
Part Number: iLD24-ACV
Product Options
Communication Options
* Whole number only
|
|
Newport iLD24-ACV Large Display AC Voltage Panel Meter
The "AC BIG Displays" (iLD-ACC and iLD-ACV) provide accurate isolated measurement of AC Voltage and Current signals. The AC Voltage model can be scaled for ranges from 0 to 400 mVac through 0 to 400 Vac. The AC Current model covers ranges from 0 to 10 mA through 0 to 5 Amps AC.
Programmable Color Display

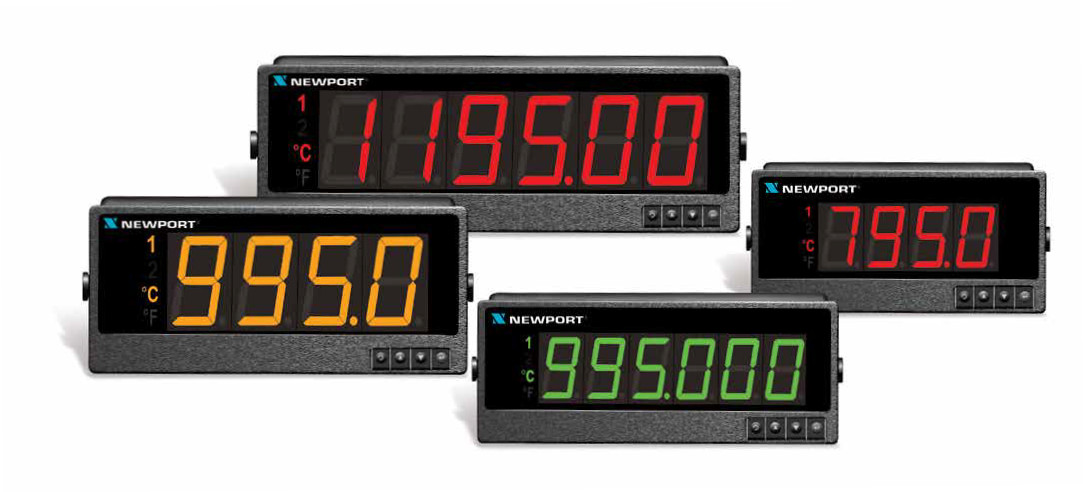

The iLD-ACC, iLD-ACV, and iLD-FP feature BIG bright 7-segment LED's that can be programmed to change colors between RED , AMBER, and GREEN to indicate visual alarms.
The BIG Display can be mounted flush in a panel or surface mounted with the included brackets. The entire BIG Display enclosure provides NEMA 4 (IP65) protection. Whether panel-mounted or surface-mounted, the BIG Display does not need to go inside a bulky and expensive NEMA enclosure.
Features
- BIG Bright 2.25" (57.2 mm) or 4.00" (101.6 mm) LED
- BIG 7-segment LEDs, 4 or 6-Digits
- Program to Change Colors: RED, AMBER, GREEN
- AC Current Input
- AC Voltage Input
- Frequency/Pulse/Rate/Totalizer Input
Technical SpecificationsAC Voltage Input (Model ACV)
Input Ranges: 400 mV, 4 V, 40 V, 400 V
Frequency Range: 30 Hz to 1 KHz
Input Impedance: 2.1 Meg for all ranges
Isolation: Dielectric strength to
1000 Vrms transient per 1 min test
based on EN61010 for 50 Vdc or Vrms
working voltage
Input Over-Voltage Protection: 10%
above full scale continuously; 100%
above full scale for 10 sec
A to D Technique: Dual slope
Read Rate: 3 readings/sec
Accuracy at 25°C: 400 mV, 4 V, 40 V
and 400 V ranges; 49 to 500 Hz
±0.2% of FS; 30 Hz to 1KHz
±0.2% of FS ±10 counts
Temperature Stability: 400 mV and
40 V range, 150 ppm/°C typical; 4 V and
400 V range, 100 ppm/°C typical
Step Response: 2 sec to 99% of the
final value (filter time constant = 64)GeneralPower: 100 to 240 Vac ±10%,50/60 Hz, 22.5 WEnvironmental Conditions: 0 to 40°C(32 to 104°F), 90% RH non-condensingWarm-Up to Rated Accuracy:60 minutesProtection: NEMA 4 (IP65) front bezelDimensionsiLD24: 289 L x 137 W x 73 mm D(11.75 x 5.375 x 2.875")
|
Newport iLD24-ACC: 57 mm (2.25") 4-digit display with AC current input.
|
Newport iLD24-FP: 57 mm (2.25") 4-digit display with frequency/pulse totalize input.
|
Newport iLD44-ACV: 101 mm (4") 4-digit display with AC voltage input.
|
Newport iLD44-ACC: 101 mm (4") 4-digit display with AC current input.
|
Newport iLD44-FP: 101 mm (4") 4-digit display with frequency/pulse totalize input.
|
Newport iLD26-FP: 57 mm (2.25") 6-digit display with Frequency/Pulse Totalize input.
|
Newport iLD46-FP: 101 mm (4") 6-digit display with frequency/pulse totalize input.
| |
