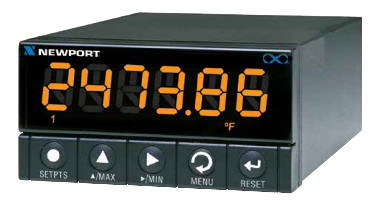

Newport BEYOND INFINITY® INF-B 1/8 DIN Ultra High Performance Meter
|
Item Number: INF-B
Configuration: INF-B
Manufacturer: Newport Electronics
Part Number: INF-B
Product Options
Power Option
Output 1 Option
Output 2 Option
Network Option
Thermocouple Kit Option
* Whole number only
|
|
Newport BEYOND INFINITY® INF-B 1/8 DIN Ultra High Performance Meter
Newport set the world standard for accuracy, performance and quality in digital panel meters. The INF-B raises the bar even higher with accuracy of up to ±0.005% of reading, and up to 142 readings per second.
The versatile INF-B handles a broad spectrum of dc voltage and current ranges, nine thermocouple types, multiple RTD's, and signals from strain gauge transducers such as load cells and pressure transducers, as well as potentiometric inputs.
It also features ten point linearization of input signals, progammable by the user for custom applications.
Built-in excitation to power virtually any sensor or transmitter, and four isolated open collector outputs for control or alarms are standard.

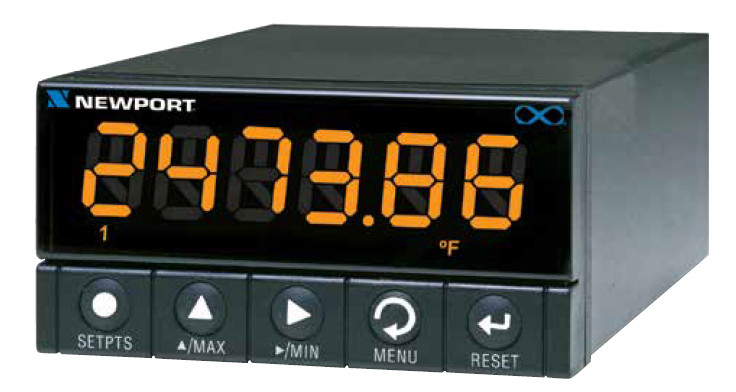

The big, bright, 6 digit patented LED display can be programmed to change color between Red, Amber, and Green at any set point. The digits are 58% bigger than the typical display. Output options include: Isolated programmable analog voltage or current and four relays.
With the Serial Communications option, the user can select from a push-button menu between RS232, RS485, and either a straightforward ASCII protocol or MODBUS. With Newport’s award-winning Ethernet/Internet option, the new INF-B connects directly to an Ethernet network and transmits data in standard TCP/IP protocol. It is possible to monitor and control a process through a web browser from anywhere on the Internet.
Embedded Internet and Serial Communications
Featuring optional "Embedded Internet" (specify EI option) the INF-B connects directly to an Ethernet network and transmit data in standard TCP/IP packets, or even serve Web pages over a LAN or the Internet. The INF-B is also available with serial communications. With the C24 option, the user can select from the push-button menu between RS232, RS422, and RS485, with straightforward ASCII commands or MODBUS.

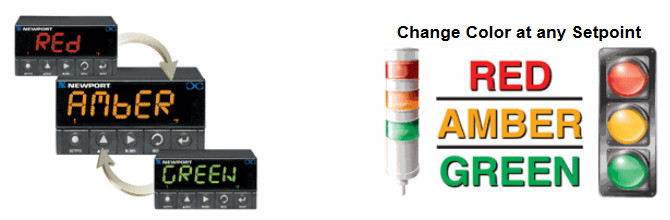

Programmable Color Display The INF-B has totally programmable color displays. The display can be programmed to change color at any set point or alarm point.
For example, the instrument can be programmed to display the process value in GREEN during warm-up, switching to AMBER to signal the normal operating range, and in RED to signal an alarm condition. The changes in color are quickly seen from a distance, and machine operators can intuitively react to changing conditions. The colors can be programmed to change back when the value drops back below the alarm point or to "latch" on until being reset by the operator.
The instrument can also be programmed to display only one unchanging color: GREEN, AMBER, or RED . This is a useful way to let an operator identify, at a glance, process values in three separate locations, or to display three different measurements such as Temperature, Pressure, and Flow. INF-B LED displays are considerably bigger, brighter and therefore more visible than displays for conventional instruments with the same DIN size.
Features
- Universal Inputs: DC Voltage/Current, T/C, RTD, Strain
- Accuracy: ±0.005% rdg
- 6-Digit Color Changing LED Display
- Up to 142 Readings Per Second
- 10-Point Linearization
- 4 Isolated Open-Collector Output
- Isolated Analog Output, Optional
- Four Relays, Optional
- Ethernet or RS232/RS485, Optional
- NEMA 4 (IP65) Front Bezel
- Ratiometic Mode for Strain Gages

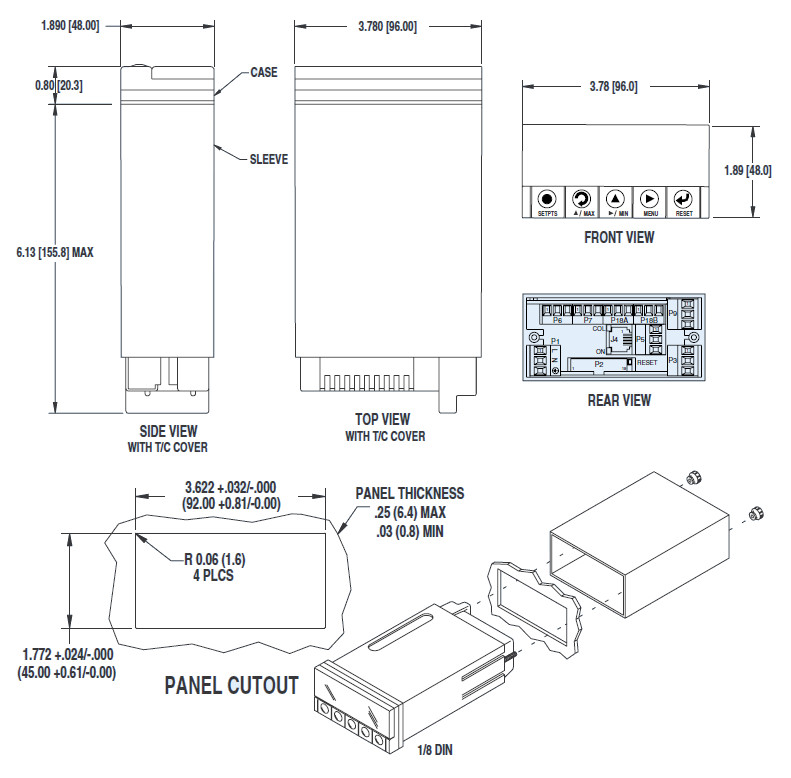

Dimensions Technical Specifications
Accuracy: ±0.005% rdg
Span Temperature Coefficient: ±20 ppm
Power: 90 to 240 Vac or 10-32Vdc
Line Voltage/Power: 90-240 Vac ±10%, 50-60 Hz
Low Voltage/Power Option: 10-32 Vdc, from qualified safety approved source
Normal Mode Rejection: 60 dB
Common Mode Rejection: 120 dB
Common Mode Voltage: 1500 V peak per Hv test
Resolution: 24-bit
Reading Rate: 7 to 142 sample/sec.
Display: red/amber/green 6-digit, 9-segment color changing, 17.3 mm (0.68") H x 10.2 mm (0.40") W;
4 alarm indicators; °C, °F, & °K
Ethernet: Standards Compliance IEEE 802.3 10Base-T
Protocols: TCP/IP, ARP, HTTPGET
RS232/RS422/RS485/Telnet Simulation/Tunneling/MODBUS:
Selectable from menu; both ASCII and MODBUS
Voltage Input Ranges:
0-100 mV, 0-1 V, 0-10 V, 0-100 V,
±50 mV, ±500 mV, ±5 V, ±50 V
Current Input Ranges: 0-20 mA, 4-20 mA
Polarity: unipolar/bipolar, programmable
|
|
Thermocouple Input Types: J, K, T, E, R, S, B, N, J DIN
RTD Input: any 6 ohm to 6 kohm NIST or DIN platinum and any linear RTD
RTD Connection: 2-, 3- or 4-wire
Sensor Excitation: 10 V at 30 mA; 24 V at 25 mA.
|
|
