Monarch SPSR Series and Smart Laser Sensor
Our Price: Starting at $255.00
Manufacturer: Monarch Instruments
Part Number: 6150
Product Options
| Monarch SPSR Model Selection: |
|
Product Options
SPSR Reflective Tape Selection
SPSR Replacement Parts Selection
* Whole number only
|
|
Monarch SPSR Series and Smart Laser Sensor
The TTL compatible output is switch selectable as either positive going 0-5V pulses or negative going 5-0V pulses provided on a BNC connector. Internal rechargeable batteries provide 40 hours of operation between charges. For continuous operation, the SPSRIM configurations can be powered by 115Vac, 230Vac or 9-15Vdc (with optional DC Cable Assembly). Self-powered sensors are a critical element for providing one pulse per revolution for vibration analyzers, spectrum analyzers, stroboscopes, data acquisition equipment, tachometers, balancers, waveform analyzers and magnetic tape recorders.

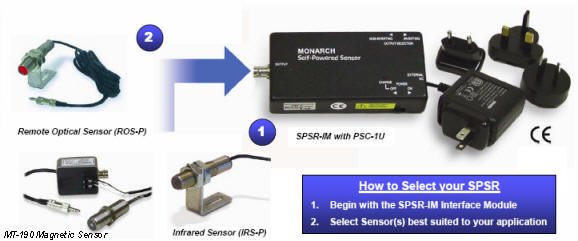

The unique SPSR Series of Self-Powered Sensors provide a TTL compatible pulse output from any of four input sensors:
- A visible optical red LED light source (ROS-P)
- A visible optical red Laser light source (ROLS-P)
- An infrared light source (IRS-P)
- An amplified magnetic sensor (MT-190P)
Features
Specifications
|
Range (RPM)
|
Same as Sensor
|
|
Output Signal
|
TTL compatible pulse, 0-5V or 5-0V
|
|
Pulse Width
|
Determined by size of target and rotational speed
|
|
Output Connector
|
BNC
|
|
Power
|
Built in rechargeable battery pack (NiMH), 4.8Vdc
|
SPSR-IM Includes

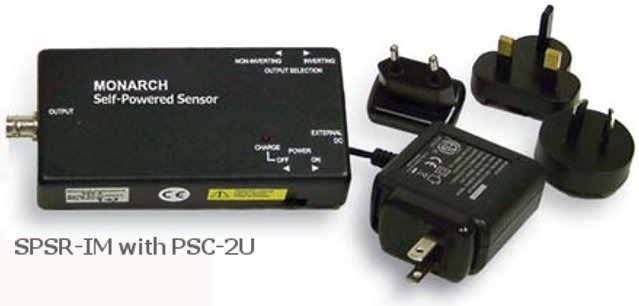

- Interface Module with PSC-2U 115/230 Vac power supply/re-charger
SPSR-115/230 Includes
SENSORS
ROS-P-25: Remote Optical Sensor with 25 foot cable, mounting bracket and 12 inches of reflective tape
ROS-P: Remote Optical Sensor with 8 foot cable, mounting bracket and 12 inches of refletive tape
ROLS-P: Remote Optical Laser Sensor with 8 foot cable, 1/8" (3.5mm) phone plug connector, mounting bracket with jam nuts and 12 inches of reflective tape
MT-190P: Magnetic Trigger Sensor/Amplifier with 8 foot cable.
IRS-P: Infrared Sensor with 8 foot cable, 3.5 mm plug and mounting bracket
Reflective Tape
| T-5: |
Reflective Tape - 5 Foot Roll, 0.5 inch wide |
| T-150: |
Reflective Tape - 150 Foot Roll, 0.5 inch wide |
| T-5WP: |
Waterproof Reflective Tape (honeycomb patter) - 5 foot roll, 1 inch wide |
|
