Monarch SLS-115/230 Smart Laser Sensor
|
Item Number: SLS-115/230
Manufacturer: Monarch Instruments
Part Number: 6180-022
Product Options
Monarch SLS-115/230 Accessory Options
* Whole number only
|
|

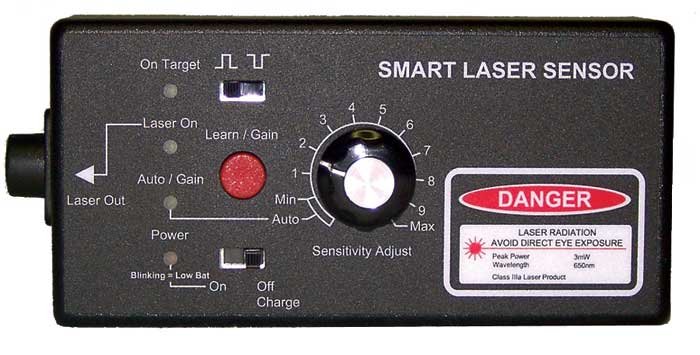

Monarch SLS-115/230 Smart Laser Sensor
Smart Laser Sensor is an internal battery-powered optical sensor utilizing a visible Class 3R Laser for a TTL pulse output. Operating range up to 65 feet with reflective tape and up to 3 feet*(1 m) off contrasting color targets, keyways, bolt heads or blades.
*performance subject to intensity of ambient light irradiation
Features
-
"Smart" auto gain provides best performance in picking up target reflection.
-
On Target” Indicator
-
TTL pulse output signal inverter Switch
-
Manual sensitivity knob provides dynamic fine tuning of sensor response
-
On/Off or Recharge Switch Power/Battery Condition Indicator
-
Class 3R visible Laser and Nosepiece
-
Signal/Pulse/RS232 Output DIN connector Port
-
External DC power or recharger Port
-
Tripod Mounting Bushing (¼ - 20 UNC)
Applications
- Potable balancing TTL trigger
- Automotive and aerospace performance testing
- Vibration data collection TTL trigger, synchronous time averaging
- Papermaking and converting felt speed, feed rates
- Sata acquisition TTL trigger
- Rotating machinery speed readings and TTL trigger
|
Specifications
|
Optical:
|
Class 3R visible laster 3 mW peak power
|
|
Operating Range:
|
up to 65 feet (19.8 m)
|
|
Speed Range:
|
1-500,000 RPM
|
|
Output Signal:
|
TTL 5-0 VDC (user selectable polarity), RS232 (ASCII)
|
|
Operating Temp:
|
32° to 104°F (0° to 40°C)
|
|
Dimensions:
|
5.41"(L) x 2.35" (W) x 2.14" (H) (13.74 x 5.96 x 5.43cm)
|
|
Mounting:
|
¼-20" UNC bushing
|
|
