Monarch Instruments GE200 HP Gas Engine Inductive Sensor
|
Item Number: 6180-014
Manufacturer: Monarch Instruments
Part Number: 6180-014
Product Options
Monarch Instruments GE200 Amp Options (Recommended)
* Whole number only
|

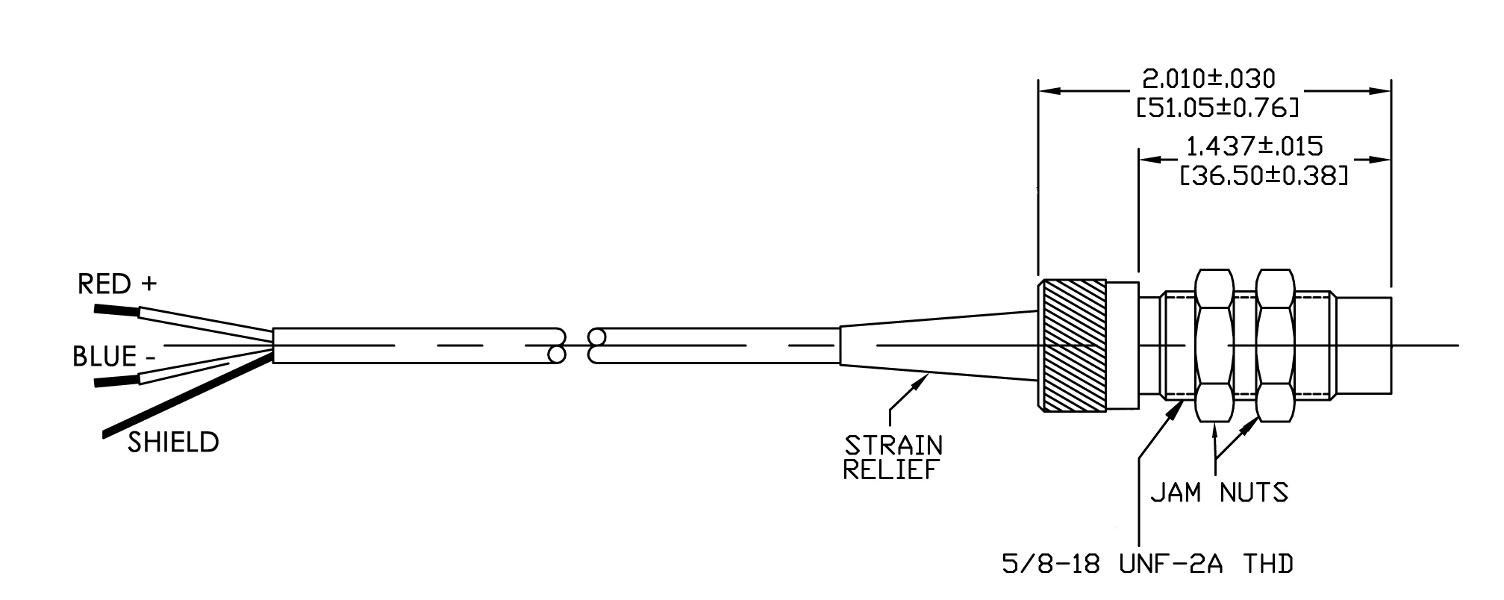

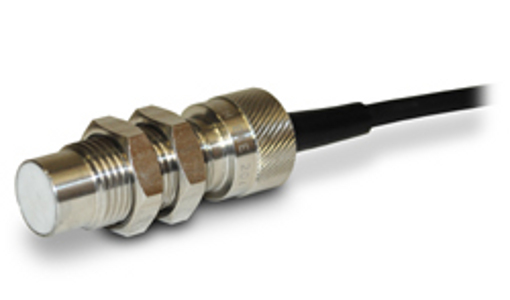

 Monarch Instruments GE200 HP Gas Engine Inductive Sensor Monarch Instruments GE200 HP Dimensions |
|
Monarch Instruments GE200 HP Gas Engine Inductive Sensor
The new GE200 HP is a non-contact electromagnetic inductive sensor designed for making RPM measurements on gasoline engines. The sensor will detect the high voltage flux field being induced from ignition coils or magnetos on 2 or 4 cycle gasoline engines. The GE200 HP must be connected to the Monarch amplifier module which provides input power and a TTL pulse output. The GE200 HP includes an integral 15 foot (5 m) cable that can be extended to 150 feet (50 m).
The GE200HP sensor can be mounted up to 12 inches (30 cm) away from the ignition coil or magneto. The sensor will detect the electromagnetic flux field through metal engine covers. To find the optimal mounting position, simply move the sensor around the high voltage flux source until the display on your tachometer indicates a steady RPM reading. The GE200 HP is connected to the Monarch amplifier module and the amplifier module is connected to your tachometer or data acquisition system.
Technical Specifications
Ranges:
1-99,999 RPM 1 to 12 inches [2.54 to 30.48 cm] from coil/magneto 3.3 to 24 Vdc, 4 mA for amplifier input
Output Signal:
Same as power supplied, TTL compatible
Operating Temperature:
-65° to 225° F [-54° to 107° C]
Standard Cable Length:
Sensor: 15 feet [4.572 m], Amplifier: 1.5 feet [0.457 m]
Weight:
Sensor: 9.25 oz [262.2 g], Amplifier: 3.58 oz [101.6 g]
|
