Monarch Examiner 1000 Vibration Meter
Our Price: Starting at $1,200.00
Manufacturer: Monarch Instruments
Part Number: 6400-010
Product Options
| Monarch Examiner 1000 Model Selection: |
|
* Whole number only
|
|

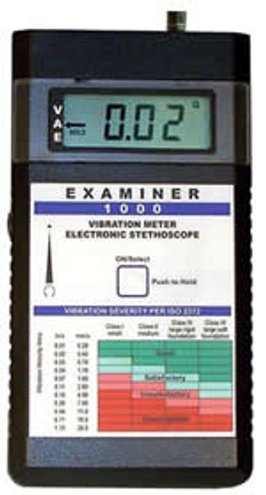

Monarch Examiner 1000 Vibration Meter
Examiner 1000 overall vibration meter and electronic stethoscope is the ideal tool for cost-effective predictive maintenance. This meter is simple to operate with only one button and volume adjustment. Troubleshoot bearings and lubrication with the digital LCD and stethoscope features to enhance machinery reliability. Compare your vibration results by using the ISO 10816 Severity Chart right on the meter.
Features:
-
Electronic Stethoscope-troubleshoot while listening to the bearing
-
Measure vibration in:
Acceleration- perfect for high-speed applications
Velocity- in English or Metric per ISO 10816
Acceleration Envelope- high-pass filter method
Example Applications:
-
Bearings
-
Gearboxes
-
Librication
-
Pumps
-
Motors
-
Fans

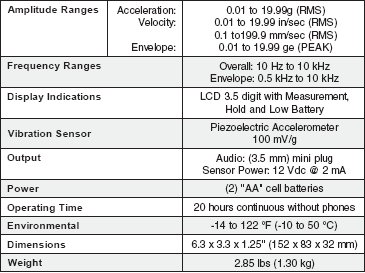

Specifications:

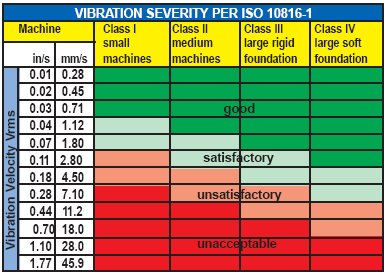

Overall Vibration Severity Chart, located on the front panel
of the Examiner 1000, provides instant status of measured
machinery
OnTime Trending Software:
OnTime Trending Software is a simple-to-use, graphical program designed for condition-based maintenance through the routine trending of vibration and process information. Trending is the best method to judge the dynamic operating conditions of your machinery. OnTime helps you to manage all key machinery operating conditions.
Trend:
OnTime is easy to set-up. Building the user-defined database of collection points is simple and intuitive. Construct entire Plants with complex machines and data collection points in minutes. Cut, paste, copy and edit-all the familiar windows features are here.
OnTime graphically displays automatically built trends of the data entered. User defined alarms are set and if violated, an immediate visual alarm is displayed in the software. This allows for instant identification of machines which require corrective action. Compare any type of data.
6400-011 - Examiner 1000:
Vibration Meter with Sensor Pak, Headphones, Carrying Case, No OnTime Software included

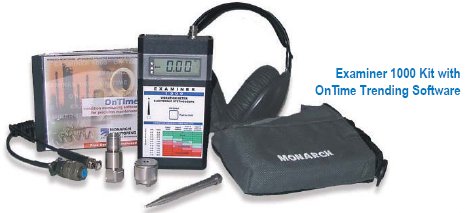

6400-014 - Examiner 1000 Kit:
Vibration Meter, Sensor Pak, Headphones, Carrying Case and OnTime GPlite Software
6400-010 - Examiner 1000 System Includes:
Vibration Meter, Sensor Pak, Headphones, Carrying Case, OnTime GP Software
 |
